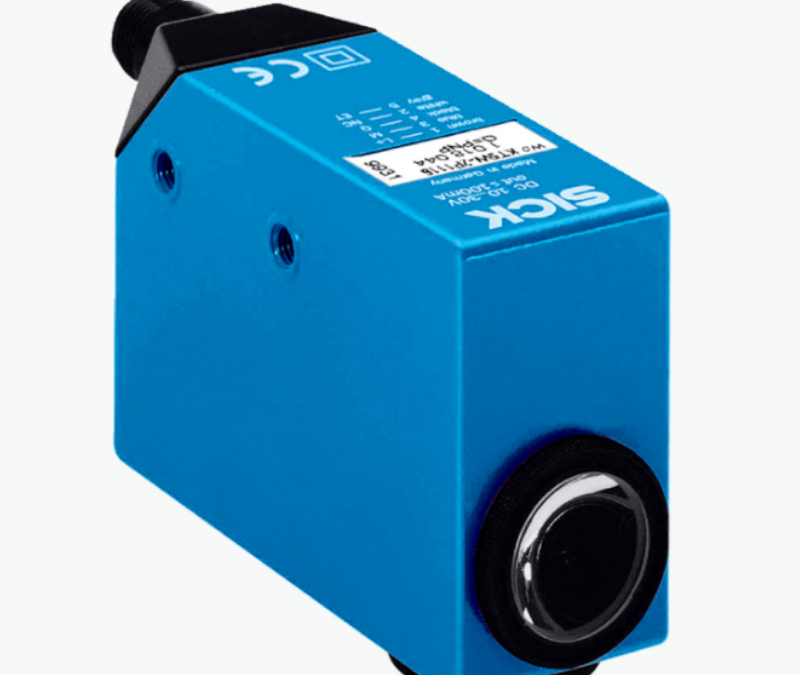

KT5W-2P1116 1018044 SICK Registration Sensors
Model: KT5W-2P1116 1018044 SICK Registration Sensors
Dimensions (W x H x D) 30.…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
| Sensing distance | ≤ 10 mm 1) |
| Housing design | Rectangular |
| Light source | LED, RGB 2) |
| Wave length | 470 nm, 525 nm, 640 nm |
| Light emission | Long and short side of housing, exchangeable |
| Light spot size | 1.2 mm x 4.2 mm |
| Light spot direction | Vertical 3) |
| Adjustment | Teach-in button |
| Teach-in mode | Static 2-point teach-in |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | < 80 mA 3) |
| Switching frequency | 10 kHz 4) |
| Response time | 50 µs 5) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V |
| Output current Imax. | 100 mA 6) |
| Input, teach-in (ET) | PNP
Teach: U = 10 V … < UV Run: U < 2 V |
| Retention time (ET) | 25 ms, non-volatile memory |
| Connection type | Male connector M12, 5-pin |
| Protection class | II 7) |
| Circuit protection | UV connections, reverse polarity protected
Output Q short-circuit protected Interference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 400 g |
| Housing material | Metal, zinc diecast |
