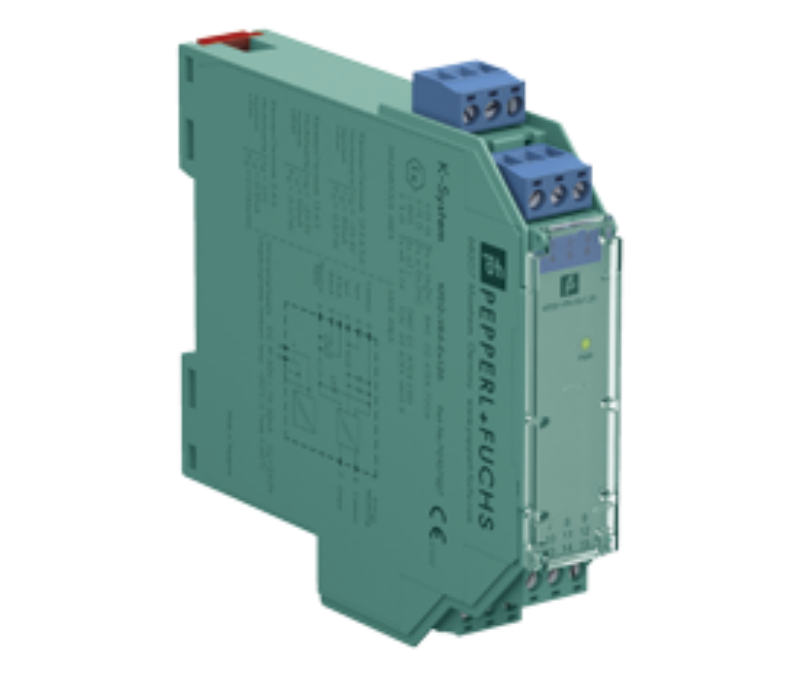

KFD2-VR4-Ex1.26 FUCHS Voltage Repeater
Model: KFD2-VR4-Ex1.26 FUCHS Voltage Repeater
Degree of protection IP20 …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Degree of protection | IP20 | |
| Connection | screw terminals | |
| Mass | approx. 125 g | |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 | |
| Height | 119 mm | |
| Width | 20 mm | |
| Depth | 115 mm | |
| EU-type examination certificate | BAS 02 ATEX 7206 | |
| Marking |  II (1)G [Ex ia Ga] IIC , II (1)D [Ex ia Da] IIIC |
|
| Input | Ex ia Ga, Ex ia Da | |
| Voltage | -26.4 V | |
| Current | 90 mA | |
| Power | 570 mW | |
| Supply | ||
| Maximum safe voltage | 253 V (Attention! The rated voltage can be lower.) | |
| Output | ||
| Maximum safe voltage | 253 V (Attention! The rated voltage is lower.) | |
| EU-type examination certificate | DMT 01 ATEX E 133 | |
| Marking | I (M1) [Ex ia] I |
|
| Certificate | TÜV 99 ATEX 1499 X | |
| Marking | II 3G Ex nA II T4 |
|
