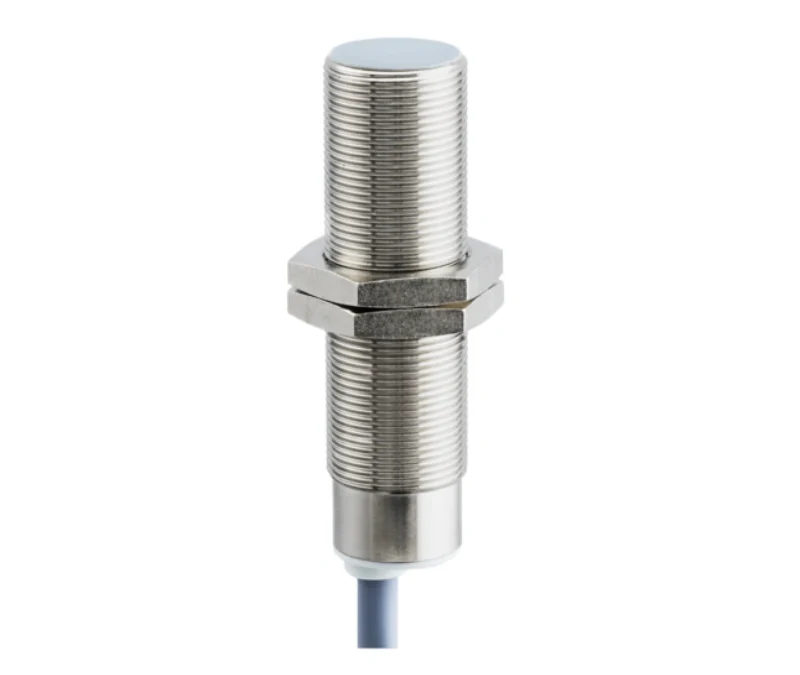

IWRM18U9501 Baumer Inductive distance sensors
Model: IWRM18U9501 Baumer Inductive distance sensors
housing material brass nic…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| housing material | brass nickel plated |
| load resistance | > 1000 Ohm |
| temperature coefficient | 1 µm / (K mm) |
| mounting type | flush |
| IWRM 18U9501 dimension | 18 mm |
| current consumption max. (no load) | 20 mA |
| operating temperature | 0 … +60 °C |
| protection class | IP 67 |
| type | cylindrical threaded |
| linearity error | ± 100 µm |
| measuring speed | < 1 mm / ms |
| voltage supply range +Vs | 15 … 30 VDC |
| reference distance | 3,25 … 3,75 mm |
| connection types | cable, 2 m |
| manufacter SKU | IWRM 18U9501 |
| housing length | 65 mm |
| reverse polarity protection | yes |
| short circuit protection | yes |
| output circuit | voltage output |
| residual output ripple | < 0,5 % Vs |
| repeat accuracy | < 0,02 mm |
| output signal | 1 … 9 VDC |
| measuring distance Sd | 2 … 5 mm |
