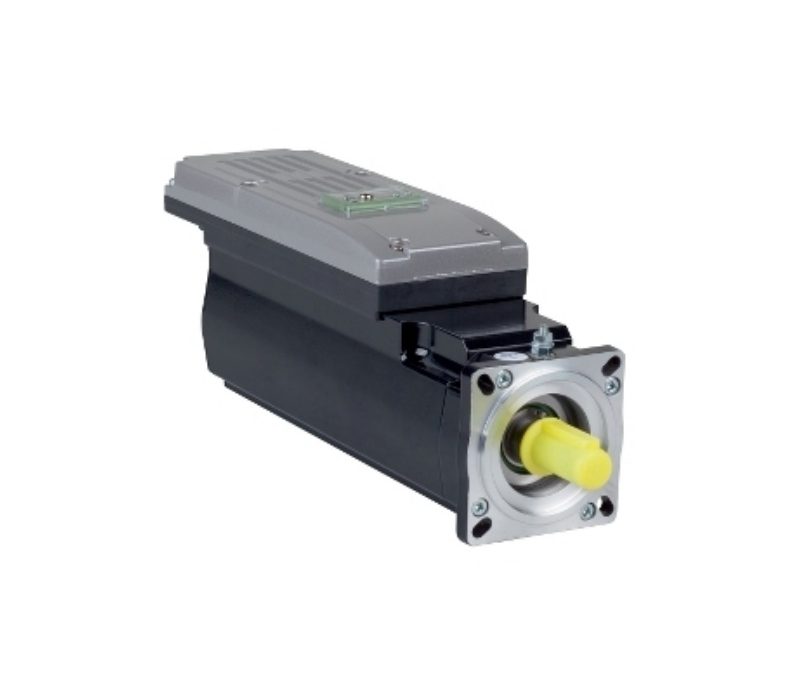

ISH070/60011/0/0/00/0/00/11/00VIA0701D02F0000 ELAU servo motors
Model: ISH070/60011/0/0/00/0/00/11/00VIA0701D02F0000 ELAU servo motors
Main Range of Product PacD…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | PacDrive 3 |
|---|---|
| Product or Component Type | Servo motor integrated drive |
| Device short name | ILM |
| [Us] rated supply voltage | 250…700 V |
|---|---|
| Continuous stall current | 1.55 A |
| Continuous stall torque | 9.74 lbf.in (1.1 N.m) |
| Peak stall torque | 30.98 lbf.in (3.5 N.m) |
| Nominal Output Power | 310 W |
| Nominal torque | 4.43 lbf.in (0.5 N.m) |
| Nominal speed | 6000 rpm |
| Maximum current Irms | 5.7 A |
| Line Rated Current | 0.6 A |
| Shaft end | Untapped |
| Second shaft | Without second shaft end |
| Shaft diameter | 0.43 in (11 mm) |
| Shaft length | 0.91 in (23 mm) |
| Key width | 0.71 in (18 mm) |
| Feedback type | Absolute single turn SinCos Hiperface |
| Speed feedback resolution | 128 periods |
| Holding brake | Without |
| Mounting Support | International standard flange |
| Motor flange size | 2.76 in (70 mm) |
| Torque constant | 0.71 N.m/A 248 ??F (120 ??C) |
| Back emf constant | 46 V/krpm 68 ??F (20 ??C) |
| Number of motor poles | 6 |
| Rotor inertia | 0.25 kg.cm2 |
| Stator resistance | 10.4 Ohm 68 ??F (20 ??C) Ph/Ph 7.23 Ohm 248 ??F (120 ??C) Ph/N |
| Stator inductance | 38.8 mH 68 ??F (20 ??C) Ph/Ph 19.4 mH 248 ??F (120 ??C) Ph/N |
| Maximum radial force Fr | 660 N 1000 rpm 520 N 2000 rpm 460 N 3000 rpm 410 N 4000 rpm 380 N 5000 rpm 360 N 6000 rpm |
| Maximum axial force Fa | 0.2 x Fr |
| Type of cooling | Natural convection |
| Length | 8.35 in (212 mm) |
| Number of motor stacks | 1 |
| Centring collar diameter | 2.36 in (60 mm) |
| Centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.22 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.23 in (82 mm) |
| Net Weight | 5.95 lb(US) (2.7 kg) |
| IP Degree of Protection | IP54 |
|---|
| Category | US1PC5218351 |
|---|---|
| Discount Schedule | PC52 |
| GTIN | 3606485293592 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.27 in (21.0 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 14.02 in (35.6 cm) |
| Package 1 Weight | 7.28 lb(US) (3.3 kg) |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 31.89 in (81.0 cm) |
| Package 2 Width | 23.62 in (60.0 cm) |
| Package 2 Length | 31.50 in (80.0 cm) |
| Package 2 Weight | 114.64 lb(US) (52.0 kg) |
| Warranty | 18 months |
|---|
