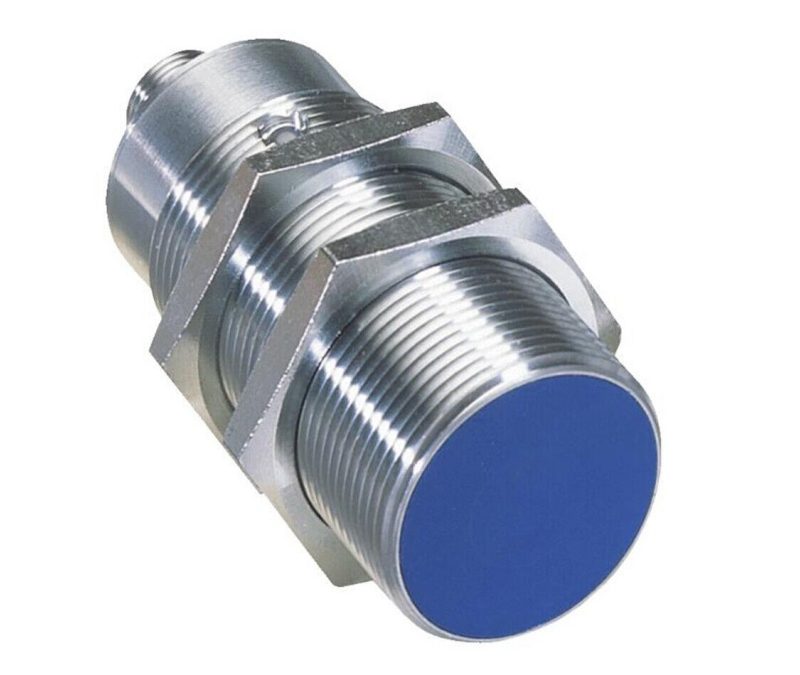

IM30-40NPS-ZC1 SICK Proximity Sensors
Model: IM30-40NPS-ZC1 SICK Proximity Sensors
Features Housing: Cylindri…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Features
| Housing: | Cylindrical |
| Thread size: | M30 x 1.5 |
| Sensing range Sn: | 40 mm |
| Assured sensing range Sa: | 32.4 mm |
| Installation type: | Non-flush |
| Switching frequency: | 100 Hz |
| Output type: | PNP |
| Output function: | NO |
| Electrical wiring: | DC 3-wire |
| Enclosure rating: | IP 67?1) |
| Connection type: | Connector M12, 4-pin |
| Housing: | Standard |
| 1)?According to EN 60529 | |
| Mechanics/electronics | |
| Supply voltage: | 10 V DC … 30 V DC |
| Ripple: | ?? 20 %?1) |
| Voltage drop: | ?? 2 V?2) |
| Power consumption: | ?? 10 mA?3) |
| Time delay before availability: | ?? 200 ms |
| Hysteresis: | 1 % … 15 % |
| Repeatability: | ?? 5 %?4)?5) |
| Temperature drift (of Sr): | ?? 10 % |
| EMC: | According to EN 60947-5-2 |
| Output current Ia: | ?? 200 mA |
| Short-circuit protection: |  |
| Reverse polarity protection: | |
| Power-up pulse protection: | |
| Shock/vibration: | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature: | -25 ??C … 70 ??C |
| Housing material: | Metal, Chrome-plated brass |
| Housing cap material: | Plastic, PBTP |
| Housing length: | 73.5 mm |
| Thread length: | 42 mm |
| Tightening torque, max.: | 70 Nm |
