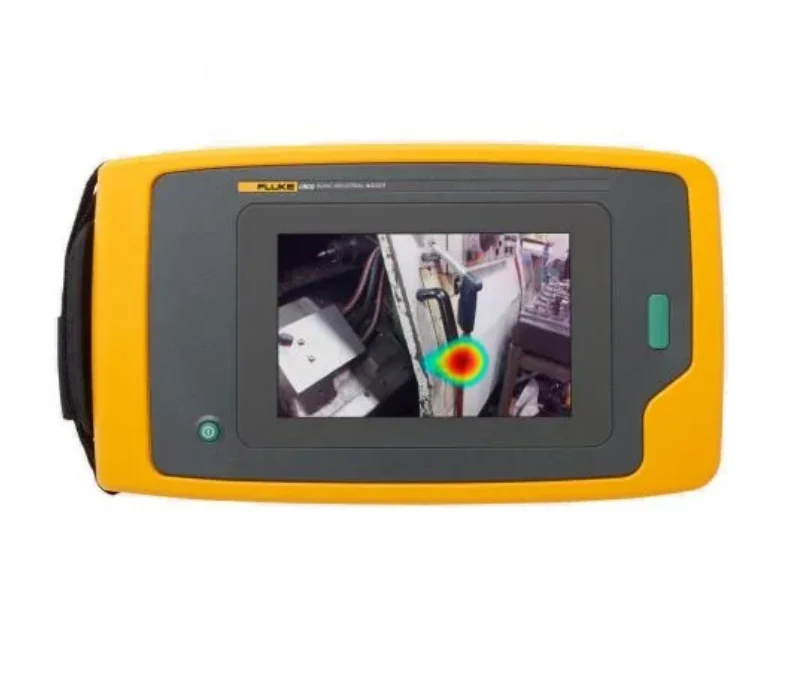

ii900 Fluke Industrial Acoustic Imager
Model: ii900 Fluke Industrial Acoustic Imager
Sensors # of microphones 6…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Sensors | |
|---|---|
| # of microphones | 64 digital MEMS microphones |
| Frequency band | 2 kHz to 52 kHz |
| Sound pressure sensitivity | Detects a 0.005 CFM leak at 100PSI from up to 32.8 feet (Detects a 2.5 cm3/sec leak at 7 bar from up to 10 meters) |
| Operation distance range | 0.5 to > 70 meters (1.6 to > 164 feet)* |
| Field of View | 63 ?? ?? 5 ?? |
| Nominal frame rate | 25 FPS |
| *Depending on ambient conditions | |
| Built-in digital camera (visible light) | |
|---|---|
| Field of View (FOV) | 63 ?? ?? 5 ?? |
| Focus | Fixed lens |
| Zoom | 3 x Digital Zoom |
| Resolution | 1.2 MP |
| Display | 7″ LCD with backlight, under-sunlight readable |
|---|---|
| Resolution | 1280 x 800 (1,024,000 pixels) |
| Touchscreen | Capacitive |
| Acoustic Image | Yes, SoundMap? image |
| Image storage | |
|---|---|
| Storage capacity | 20GB (>5000 pictures / >999 videos) |
| Image format | Blended visual and SoundMap?.JPG or .PNG |
| Video format | Blended visual and SoundMap?.MP4 |
| Video length | Up to 5 minutes |
| Digital export | USB-C for data transfer |
| Acoustic Measurements | |
|---|---|
| Sound pressure (typical) | 15.4 dB to 115.2 dB SPL (??1 dB) at 2 kHz 5.6 dB to 102.5 dB SPL (??2 dB) at 19 kHz 28.4 dB to 131.1 dB SPL (??1 dB) at 35 kHz 41.8 dB to 133.1 dB SPL (??3 dB) at 52 kHz |
| Auto max/min dB gain | Auto or manual, user selectable |
| Frequency band selection | User selectable through user-made presets or manual entry |
| Classification and quantification | LeakQ? Leak size and cost estimation |
| Software | |
|---|---|
| Ease of use | Intuitive user interface |
| Trend graphs | Frequency and dB scale |
| Spot markers | dB level reading at center point of the image |
| Asset ID | QR code based asset ID identification |
| Asset Inspection Status: | ‘As left’, ‘As found’ ; ‘Undetermined’ |
| Photo notes | Up to 4 photos notes for reference |
| Source | Show single or multiple sources |
| Profile | Preset capture profiles |
| Annotation: | Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure; |
| Other | Operating conditions; Weather notes |
| Leak values | Leak costs; Leak volume; LeakQ? scale |
| Battery | |
|---|---|
| Batteries (field-replaceable, rechargeable) | Rechargeable Li-ion |
| Battery life | 6 hours (product includes spare battery) |
| Battery charging time | 3 hours |
| Battery charging system | External charger |
| General Specifications | |
|---|---|
| Standard palettes | 3: Grayscale, Ironbow, Blue-Red |
| Operating Temperature | -10 ??C to 45 ??C (14 ??F to 113 ??F) |
| Storage Temperature | -20 ??C to 70 ??C (-4 ??F to 158 ??F) Without batteries |
| Relative humidity | 10 % to 95 % non-condensing |
| Size (H x W x L) | 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches) |
| Weight (battery included) | 1.8 kg (3.95 pounds) |
