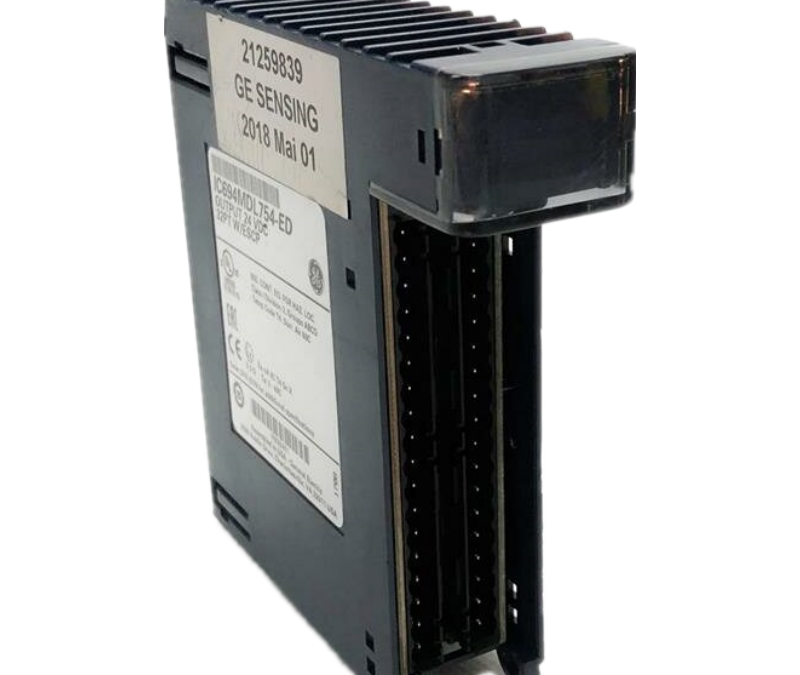

IC694MDL754 General Electric Output Module
Model: IC694MDL754 General Electric Output Module
Manufacturers GE Model(s)…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
GE
Model(s)
- Product type: Output module, 12/24VDC, 0.75A, 32-point grouping, with ESCP
- Rated voltage: 12/24 VDC, nominal
- Output voltage range: 10.2 to 30 Vdc
- Outputs per module: 32 (two isolated groups of 16 outputs each)
- Isolation, field to backplane (optical): 250 VAC continuous; 1500VAC 1 minute
- Isolation, between groups: 250 VAC continuous; 1500 VAC 1 minute
- Module ID: 0x059h
- Output current: 0.75 amps per point
- Power Consumption: 300 mA (max) on 5V bus on backplane;
- Thermal derating: No derating at 24VDC. At 30VDC, the output derates above 42 degrees Celsius as follows
- External power supply: +12 VDC to +30 VDC, nominal 12/24 VDC
- Dimensions (LxWxH) :3.8 cm x 14.0 cm x 14.0 cm
- Weight : 0.2kg
- Country of Origin:United States
