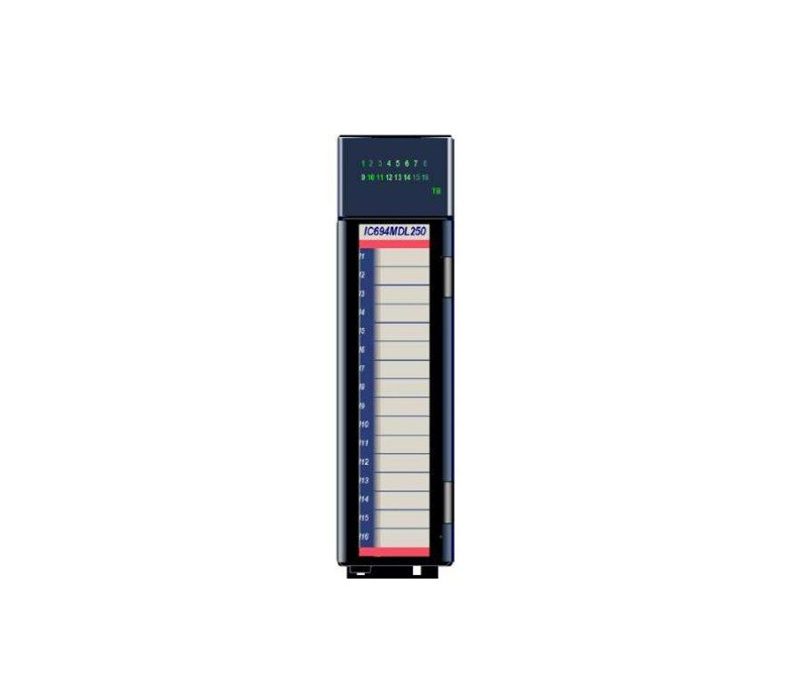

IC694MDL250 Emerson PCL Rx3i l/O Digital Input Modules
Model: IC694MDL250 Emerson PCL Rx3i l/O Digital Input Modules
echnical specifications fo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
echnical specifications for IC694MDL250
| Brand | GE Fanuc |
|---|---|
| Series | PACSystem RX3i |
| Manufacturer | GE Fanuc |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Part Number | IC694MDL250 |
| Product Description | Discrete input module |
| Series | PACSystem Rx3i |
| Description | Input module |
| No of Channels | Sixteen (16) |
| Part Number | IC694MDL250 |
| Points | 16 |
| Input signal range | 0-132 VAC |
| Product Description | Discrete input module |
| Voltage | 120 Volts AC |
| Nominal Input voltage | 120 VAC |
| No of groups | Individually isolated |
| Input Frequency | 47-63 Hz |
| Isolation, Optical and channel | 250 volts, continuous; 1500 VAC for 1 minute |
| Mounting | Panel/DIN Rail |
| Input current | 7 mA per channel |
| Input voltage range | 0-132 VAC (47 to 63 Hz) |
| Communication | RS 485 |
| Current draw | 60 mA (all outputs active) |
| Input current | 14.5 mA |
| Environment | Class 1, Division 2 |
| On State Voltage | 70 VAC to 132 VAC |
| On response time, maximum | 30 ms |
| Off state voltage | 0 VAC – 20 VAC |
| Off response time, maximum | 45ms |
| On state current | 6 mA |
| Product lifecycle | Active |
| Off state current | 2.5 mA |
| Connectors | IC694TBBx32 or IC694TBSx32 |
| Input Filter Times | 20 msec – 2540 msec in 20 msec increments. Sent from CPU |
| Diagnostics | Field side terminal block reported to RX3i CPU |
| Product Lifecycle Status | Active |
