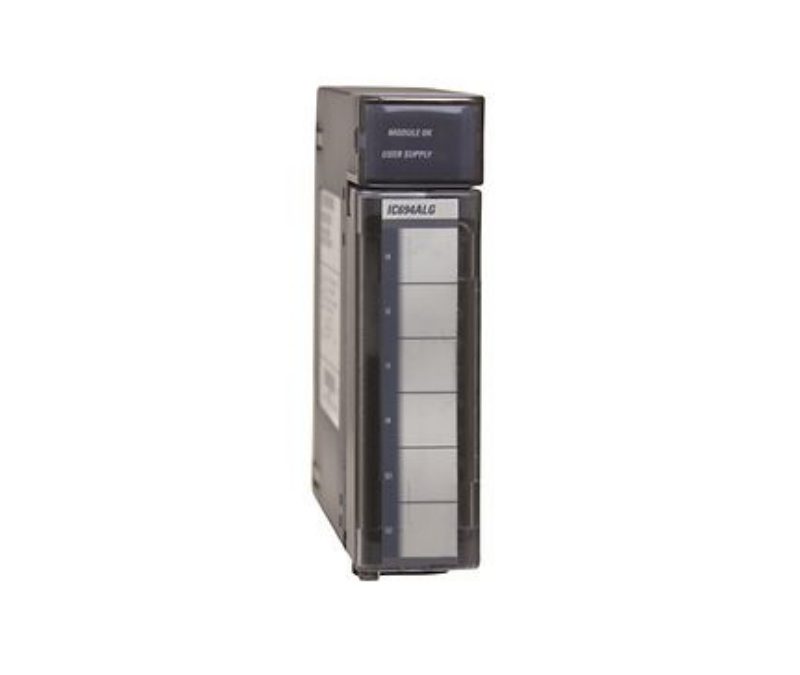

IC694ALG223 Emerson analog Input module
Model: IC694ALG223 Emerson analog Input module
Brand GE Fanuc Series PACS…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Brand | GE Fanuc |
| Series | PACSystem RX3i |
| Manufacturer | Emerson Automation |
| Product Description | Analog input module |
| Part Number | IC694ALG223 |
| Product Type | Analog current input module |
| No of Channels | Sixteen (16) single-ended inputs; |
| Input Channels | 16 |
| Nominal Input signal | 0-20 mA; 4-20 mA (normal); 4-20 mA (enhanced) |
| Input Current Ranges | 0 to 20 milliamps, 4 to 20 milliamps |
| Channel update rate | 13 ms |
| Power Requirements | 120 milliamps at 5 Volts DC |
| Digital Resolution | 12 bit |
| Input Impedance | 250 ohms |
| Analog resolution | 4–20 mA: 4 µA (4 µA/bit) 0–20 mA: 5 µA (5 µA/bit) 4–20 mA Enhanced: 5 µA (5 µA/bit) |
| External Supply Range | 20 to 30 Volts DC |
| Accuracy: | +/-0.25% of full scale @ 25degrees C (77degrees F); +/- 0.5% of full scale over specified operating temperature range |
| Input Low Pass Filter Response | 19 Hz |
| Current draw | 120 mA @ 5 VDC; 65 mA @ 24 VDC (user supplied) |
| Operating Temperature | 0 to 60 degrees Celsius |
| Calibration | 4 µA per count on 4 to 20 mA range; 5 µA per count on 0 to 20 mA and 4 to 20 mA Enhanced |
| Product Lifecycle Status | Active |
