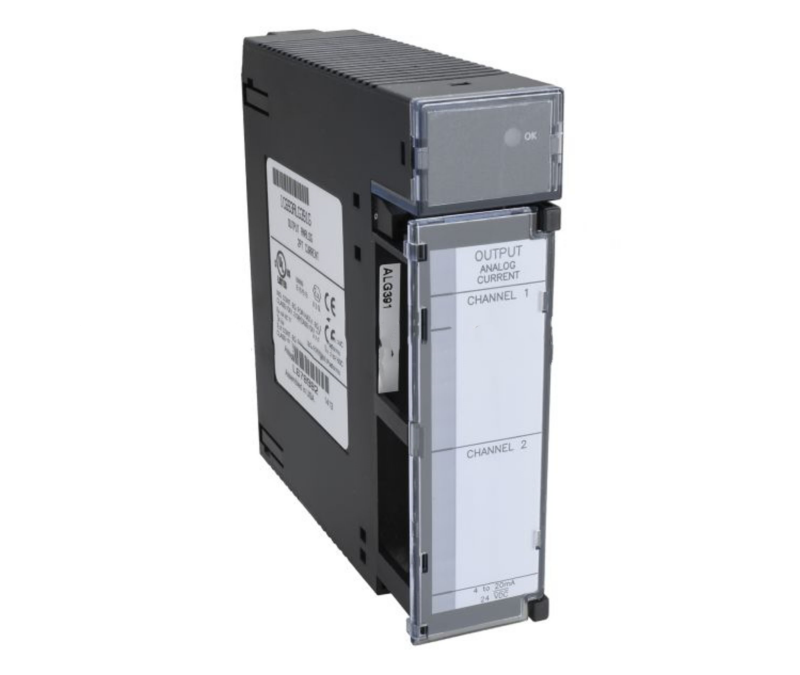

IC693ALG391 GE Analog I/O Module
Model: IC693ALG391 GE Analog I/O Module
Manufacturers GE Model(s)…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
GE
Model(s)
- Product Type: Analog Output, Current/Voltage, 2 Channels
- Life cycle status: Mature
- Module type: Analog output
- Isolation: 1500 Volts RMS field to logic side
- Range: 1-5 V and 0-5 V, 0-20 mA, 4-20 mA
- Number of channels: 2
- Update rate: 5 ms (all channels)
- Resolution: 12 bits; 0-20 mA, 5μA/bit
- Accuracy: 0-20 mA, ±8 µA at 25°C (77°F); 0-20 mA, 4-20 mA ±0.1% at 25°C (77°F)
- Maximum output load: 5 mA (2 K ohms)
- Output load capacitance: 2000 pF, inductor 1H
- Steady-state power consumption, maximum: N/A
- Connector type: Terminal block (20 screws), included with module.
- Internal power supply used: 30 mA @ 5 VDC; 215 mA 24 VDC isolated
- Dimensions (LxWxH) :15.2 cm x 15.2 cm x 5.1 cm
- Weight : 0.4kg
- Country of Origin:United States
