GE

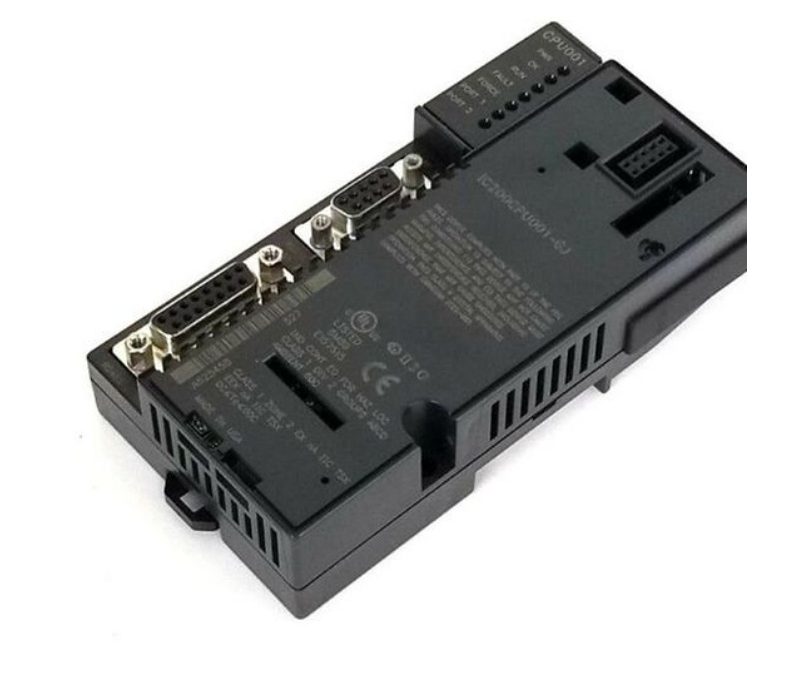

IC200CPU001 GE Central Processing Units (CPU)
Model: IC200CPU001 GE Central Processing Units (CPU)
Specifications Part Number…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications
- Part Number
- IC200CPU001
- Dimensions (W x H in mm)
- 66.8 x 128
- I/O Discrete Points
- 2048 In, 2048 Out
- Discrete Internal Bits
- 1024 points
- Discrete Temporary Bits
- 256 points
- Global Discrete Bits
- 1280 points
- Configurable Memory (Program, Registers, I/O Analog Words)
- 34K bytes maximum
- Boolean Execution Speed
- 1.8ms/K (typical)
- Floating Point
- Yes
- Override
- Yes
- Built-in Ports
- RS-232, RS-485
- Built-in communications
- SNP Slave, RTU Slave, Serial I/O
- Type of Memory Storage
- System flash, battery-backed RAM
- Battery-Backed Real-time Clock
- Yes
- Realtime Clock Accuracy (for timer functions)
- 100ppm (0.01%) or +/- 9sec/day
- Time of Day Clock Accuracy
- 100ppm at full temperature range
Technical specifications for IC200CPU001
| Brand | GE Fanuc |
|---|---|
| Series | Versamax |
| Manufacturer | Emerson Automation / GE Fanuc (former) |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Part Number | IC200CPU001 |
| Series | VersaMAx |
| Series | VersaMax |
| Description | Configurable CPU |
| Product type | CPU module |
| Part Number | IC200CPU001 |
| Serial Ports | 2 |
| User Memory | 34K Bytes |
| Product Description | Central Processing Unit (CPU) |
| Memory | 34 KB |
| Floating point math | Supported |
| Supported programming language | Ladder Diagram, Instruction list |
| Discrete Internal Bits | 1024 points |
| Typical Scan Rate | 1.8 milliseconds per 1K of logic (boolean contacts) |
| Discrete Inputs | 2048 points |
| Discrete Temporary Bits | 256 points |
| Internal memory | 384Kbytes configurable memory |
| Discrete Outputs | 2048 points |
| Boolean Execution Speed | 1.8 ms / K |
| Type of Memory Storage | RAM and Flash |
| Configurable Memory | 34K Bytes for Program, Registers, I/O Analog Words |
| Modbus Registers | 32 |
| Temporary bits | 256 points |
| Discrete Internal Bits | 1024 points |
| Real-Time Clock Accuracy | 100 ppm |
| Discrete Input | 2048 |
| Discrete Temporary Bits | 256 points |
| Backplane Current Consumption | 140 mA for 5 Volts, 100 mA for 3.3 Volts |
| Discrete output | 2048 |
| Global Discrete Bits | 1280 points |
| Communication Ports | One (1) RS232; One (1) RS485 |
| Supported serial protocols | Modbus RTU Slave, SNP, Serial I/O |
| Supported protocols: | SNP Slave, RTU Slave, Serial I/O |
| Floating Point data | Supported |
| Battery Backed RTC | Installed |
| Override functions | Supported |
| RTC Accuracy | 100ppm (0.01%) or +/- 9sec/day |
| Memory type | System flash, battery-backed RAM |
