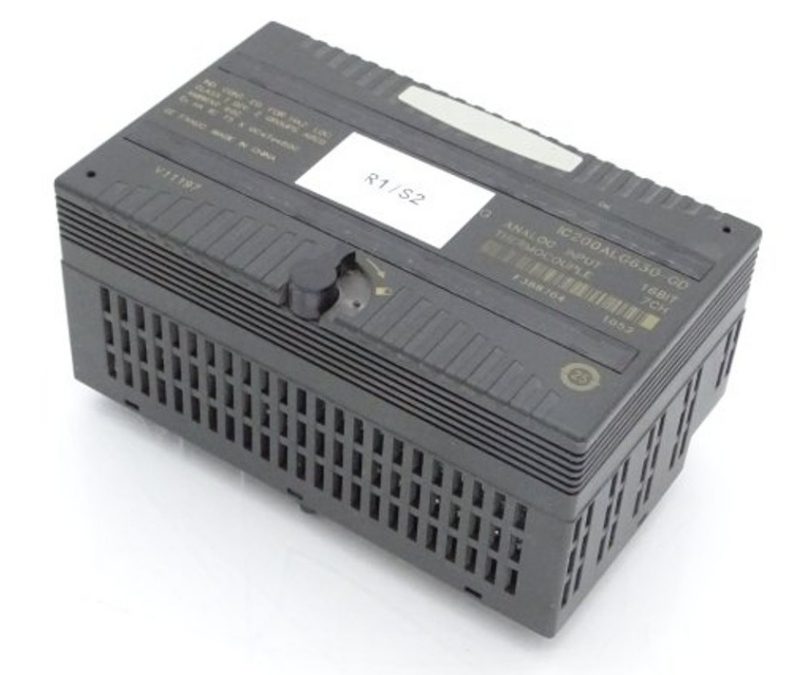

IC200ALG630 GE Analog Input Module
Model: IC200ALG630 GE Analog Input Module
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for IC200ALG630
| Brand | GE Fanuc |
|---|---|
| Series | VersaMax |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Part Number | IC200ALG630 |
| Part Number | IC200ALG630 |
| Description | Analog input module |
| Product Description | 4-point Thermocouple / milivolt input module |
| Channels | 7 |
| Compatible Thermocouple sensors | J, K, T, S, and R |
| Resolution | 16 bits |
| Compatible millivolt signals | +/-19.5mV, +/-39mV, +/-78.125mV, +/-156.25mV, +/- 312.5mV, and +/-625mV |
| Thermocouple | J, K, T, S, R |
| Digital Resolution | 15 bits plus sign |
| Power Consumption | 125 milliamperes |
| Accuracy, at 25° C | +/–0.2 % on voltage measurement; +/-0.15% on Thermocouple (temperature) measurement |
| Update Rate | 60-70 milliseconds |
| Temperature sensitivity (0° to 60°C) | +/–0.004% of reading; +/–1.5µV per °C referred to input |
| Frequency | 50/60 Hertz |
| Channel update rate | approximately 60 ms per channel @ 60 Hz; approximately 70 ms per channel @ 50 Hz |
| Temperature | 0-60 degrees Celsius |
| Backplane current consumption | 5V output: 125mA maximum; 3.3V output: 125mA |
| Channel diagnostics | Open Thermocouple, over/under range, and high/low alarm, thermistor error |
| Operating temperature range | 0 to 60 Degrees C, ambient |
| Status LED indicators | OK LED |
| User input to logic (optical) and to frame ground Isolation rating | 250VAC continuous; 1500VAC for 1 minute |
