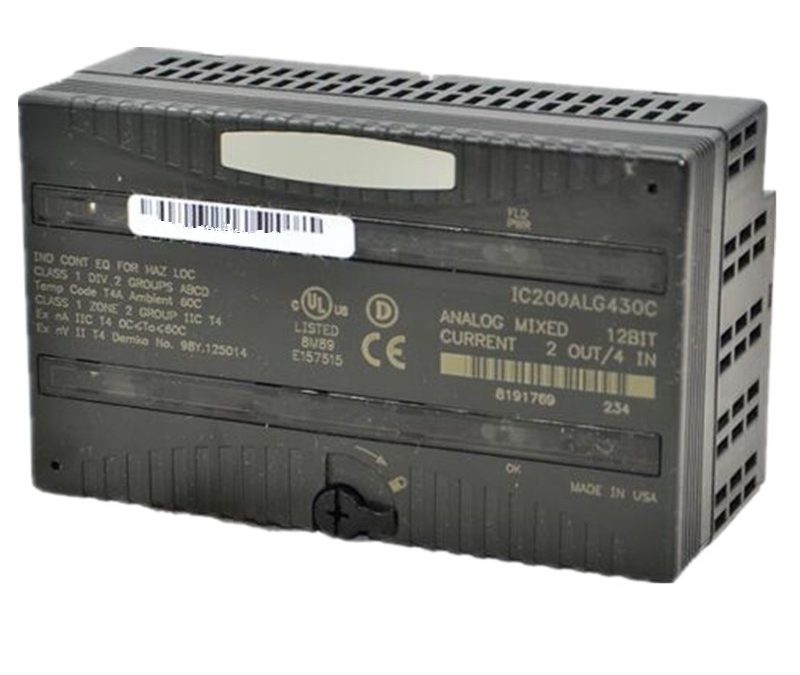

IC200ALG430C GE PCL Fanuc Analog Mixed
Model: IC200ALG430C GE PCL Fanuc Analog Mixed
Brand GE Fanuc Series Vers…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Brand | GE Fanuc |
|---|---|
| Series | VersaMax |
| Manufacturer | Emerson Automation / GE Fanuc (former) |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Part Number | IC200ALG430 |
| Series | VersaMAx |
| Part Number | IC200ALG430 |
| Description | Analog mixed module |
| Product Description | Analog combination module |
| Product Description | 6-point combination I/O module |
| Channel to Channel Crosstalk Rejection | 30 dB |
| No of analog input Channels | Four (4) |
| Wiring configuration | Input: Differential Output: Single Ended |
| Current | 4-20 milliamperes |
| No of analog output channels | Two (2) |
| Input signal, nominal | 4-20 mA |
| Update Rate | 0.4 milliseconds |
| Supported signals: | 4-20 mA |
| Output signal, nominal | 4-20 mA |
| Input Filter Response Time | 5 milliseconds |
| Resolution | 12 bit |
| Module resolution | 12 bits |
| Voltage | 250 Volts AC |
| Accuracy | +/-0.3% typ. of full scale, +/-0.5% max. of full scale at 25 Degree Celsius; +/- 0.1% maximum of full scale at 0-60 Degrees Celsius |
| Module Accuracy | +/- 0.3% typ. of full scale, +/- 0.5% max. of full scale at 25 Degree Celsius; +/-1% maximum of full scale at 0-60 Degree Celsius |
| Isolation | 250/1500 Volts AC |
| External Supply Voltage Range | 9.6 to 15VDC, 12VDC nominal (including ripple) |
| Module update rate | Input: 0.4 ms, maximum Output: 0.3 ms, maximum |
| Current consumption | 215 mA maximum plus load currents |
| Input filter response | 5.0 ms |
| Backplane current | 50 mA @ 5VDC |
| External power supply | Input: None Output: +18 to +30VDC (including ripple); 9.6 to 15VDC, 12VDC nominal (including ripple) |
| Update rate, Input | 0.4 ms |
| Module Diagnostics | Loss of User Side Power |
| Update rate, Output | 0.3 ms |
| LED Indicators | FLD POWER; MODULE OK |
| Module width | Single slot |
| Optical isolation | 250VAC continuous; 1500VAC for 1 minute |
| Optical Isolation rating | 250VAC continuous; 1500VAC for 1 minute |
