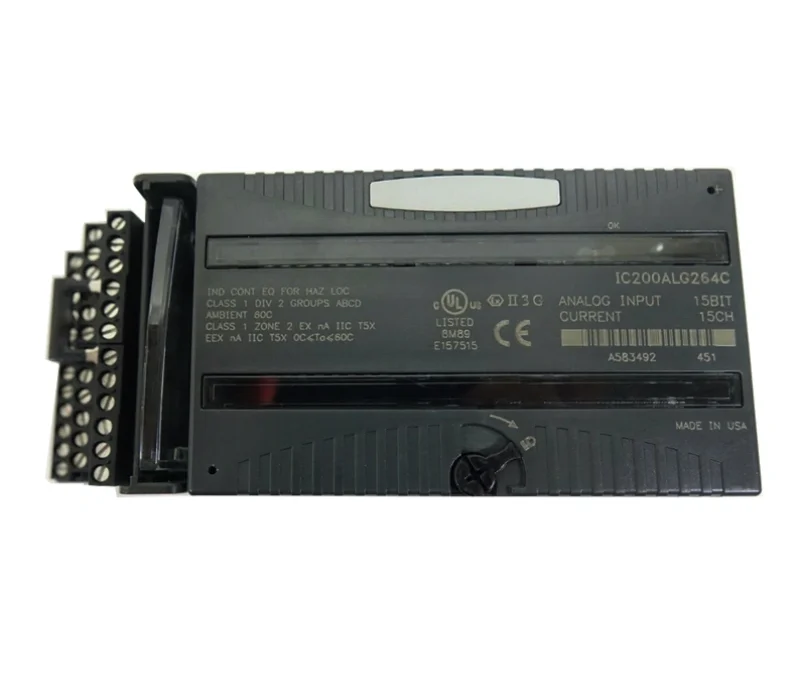

IC200ALG264E GE Analog Input Module
Model: IC200ALG264E GE Analog Input Module
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for IC200ALG264
| Brand | GE Fanuc |
|---|---|
| Series | Versamax |
| Manufacturer | Emerson Automation / GE Fanuc (former) |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Part Number | IC200ALG264 |
| Series | VersaMAx |
| Series | VersaMax |
| Type | Input Module |
| Product Description | 15-Point Analog current input module |
| Part Number | IC200ALG264 |
| Channels | 15 single ended, one group |
| No of Channels | 15, single-ended inputs |
| Wiring configuration | Single-ended |
| Isolation | 250VAC continuous; 1500VAC for 1 minute |
| No. of groups | 1 group |
| Input signal, nominal | 0-20 mA; 4-20 mA |
| LED Indicators | Yes OK LED |
| Compatible signals | 4 to 20 mA / 0 to 20 mA |
| Analog resolution | 15 bits |
| Backplane Current Consumption | 5V: 100 mA maximum |
| Resolution | 15 bit |
| Digital resolution | 0.5 µA for 4-20 mA; 0.625 µA for 0-20 mA |
| Diagnostics | Yes |
| External Supply Voltage Range | None |
| Input impedance | 100 Ohms |
| Input Currents | 1 to 20 mA |
| Internal Supply Voltage | 5 VDC from PLC backplane |
| Filter response (3dB Corner Freq) | 24 Hz +/-20% |
| Input Impedance | 100 ohms |
| Backplane current | 100 mA |
| Update rate | 7.5 ms, maximum |
| Accuracy | 0.3% typical, 1% maximum |
| Update Rate | 7.5 ms all channels |
| Input signal selection | No terminal jumper installed: 4-20 mA With Jumper installed: 0-20 mA |
| Resolution | 15 Bits |
| Resolution at 4-20 mA | 0.5µA |
| Current Draw | 100 mA, maximum |
| Resolution at 0-20 mA | 0.625µA |
| Input grouping | Single group |
| Module width | Single slot |
| Diagnostics | Loss of user side power; Open wire detection for 4-20 mA |
