Lenze

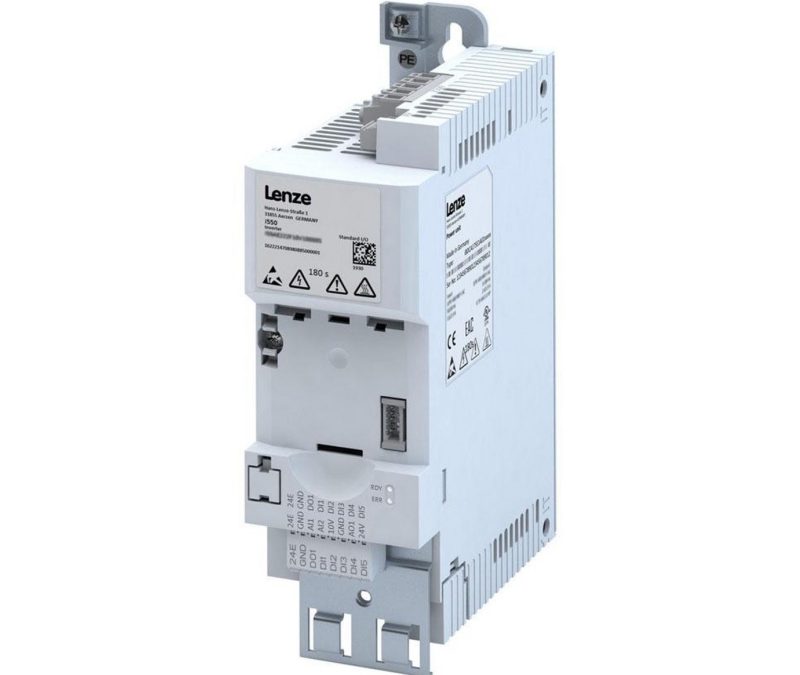

I55AE175D10V01000S Lenze AC Drives
Model: I55AE175D10V01000S Lenze AC Drives
Product Specifications Man…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Specifications
| Manufacturer | Lenze / AC Tech |
| Series | i550 Series |
| Model # | I55AE175D10V01000S |
| Warranty: | 2 Year Manufacturer |
| Horsepower | 1.0 HP |
| Input Voltage(s): | 200 – 240 VAC Input, |
| Output Voltage(s): | 240 VAC Output |
| Rated Current: | Amps |
| Input Phase: | Single Phase Input |
| Output Phase: | Three Phase Output |
| Phase Converter | Yes |
| Enclosure: | NEMA 1 |
| UV Rating | None |
| Height | 8 in |
| Width | 2 in |
| Depth | 5 in |
| Weight | 2 lbs |
| Digital Input(s) | 5 Inputs (NPN) |
| Digital Output(s) | 1 Output (Relay), 2 Outputs (NPN) |
| Analog Input(s) | 2 Analog Inputs (0 – 10 VDC / 0 – 5 VDC / 2 – 10 VDC / 4 – 20 mA / 0 – 20 mA) |
| Analog Output(s) | 2 Analog Outputs (0 – 10 VDC / 0 – 5 VDC / 2 – 10 VDC / 4 – 20 mA / 0 – 20 mA) |
| Operating Modes | Sensorless (Open Loop) Vector Control, Speed Control (V / Hz), Torque Control (Constant), Torque Control (Variable) |
