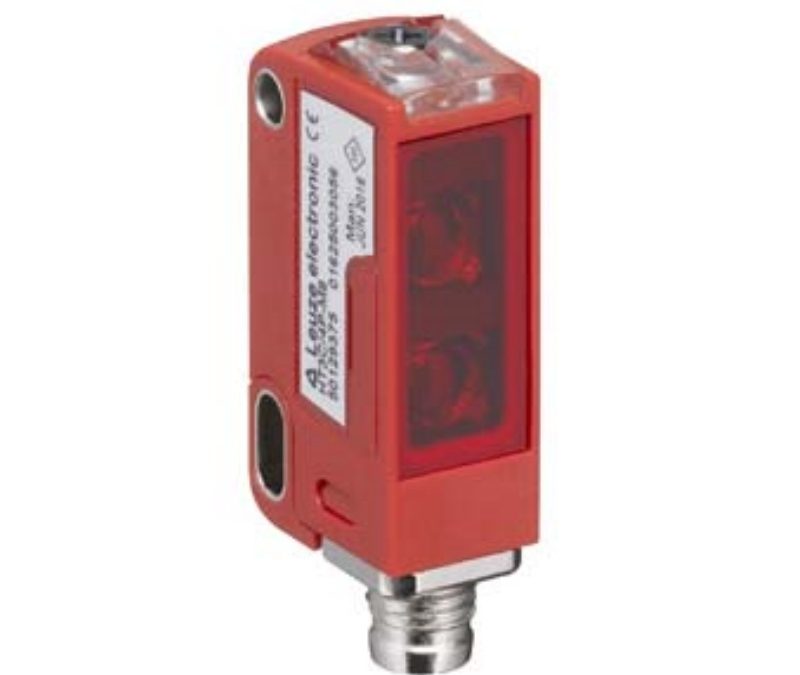

HT3CI.X/4P-M8 Leuze Diffuse sensor with background suppression
Model: HT3CI.X/4P-M8 Leuze Diffuse sensor with background suppression
Black-white error < 10% up…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Black-white error | < 10% up to 220 mm |
| Operating range | Guaranteed operating range |
| Operating range, white 90% | 0.005 … 0.45 m |
| Operating range, gray 18% | 0.01 … 0.34 m |
| Operating range, black 6% | 0.015 … 0.22 m |
| Operating range limit | 0.005 … 0.45 m |
| Operating range limit | Typical operating range |
| Adjustment range | 15 … 450 mm |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 633 nm |
| LED group | Exempt group (in acc. with EN 62471) |
| Type of light spot geometry | square |
| Focus | Fixed |
| Focal distance | 200 mm |
| Supply voltage UB | 10 … 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 … 15 %, From UB |
| Open-circuit current | 0 … 15 mA |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Net weight | 10 g |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Compatibility of materials | ECOLAB |
