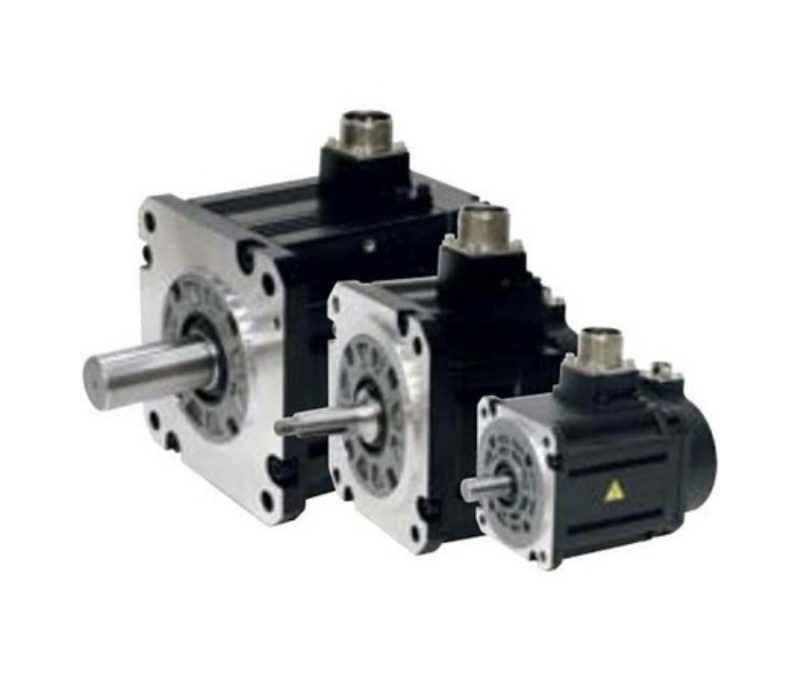

HG303BS-D48 Mitsubishi AC servo motors
Model: HG303BS-D48 Mitsubishi AC servo motors
Specifications Primary bra…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications
Primary brand Mitsubishi Electric
Main function AC servo motor
Product series / family name HG series
Functions AC brushless rotary servo motor
Design straight shaft
built-in e/m brake
built-in absolute feedback encod. (20-bit)
medium inertia
built-in e/m brake
built-in absolute feedback encod. (20-bit)
medium inertia
Supply voltage (AC) 200Vac class
Rated current 11A
Rated active power (kW) 3000W / 3kW
Rotational speed 2000rpm
3000rpm (maximum)
3000rpm (maximum)
Stall torque 22.5Nm
Moment of inertia 0.0847kg.m2 (84.7kg.cm2)
Mounting mode 176x176mm flange mounting
Resolution 20-bit (equivalent to 1048576 ppr) feedback
Degree of protection IP67
Maximum current 48 A
Order code / Manufacturer SKU HG303BS-D48
Manufacturer product status Commercialized
