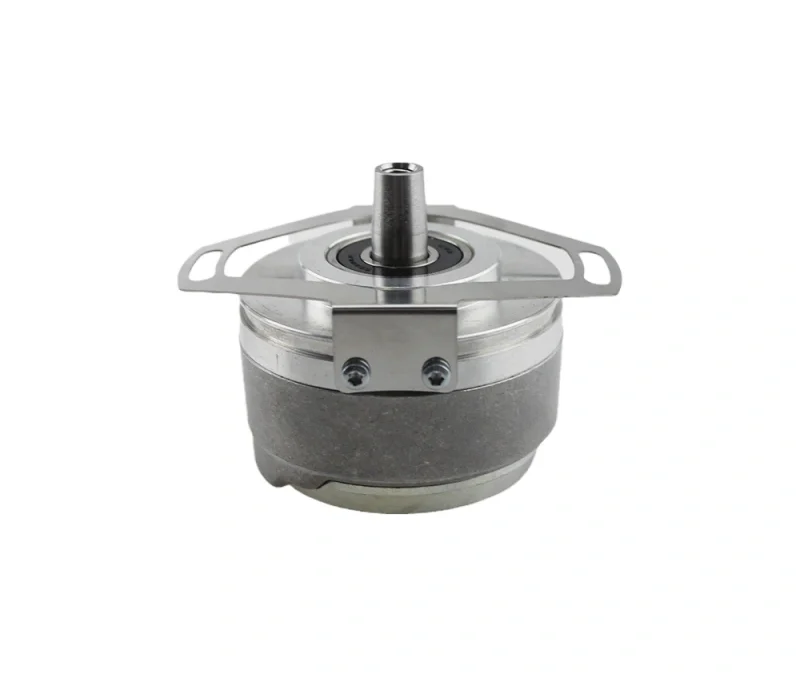

Heidenhain?EQN?1325 HEIDENHAIN encoder
Model: Heidenhain?EQN?1325 HEIDENHAIN encoder
Manufacture Heidenhain Des…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Description
Rotary encoder with integral bearing
Differentiable revolutions: 4096
Positions per revolution: 8192
Data interface: EnDat01
Output code: Binary
Line count: 2048
Output signal: ~1Vpp
Cutoff frequency (-3 dB): 400.00 kHz
Power supply: 3.6 V … 14 V
Coupling version: without coupling
Shaft: Tapered shaft 1 to 10, functional diameter 9.25 mm, back-off thread M10 and M6
Degree of protection: IP40 (EN60529)
Operating temperature: -40/+115 ??C
Electrical connection: Plug connector, straight, double-row, 12-pin, with locking mechanism and walls
Pin configuration: D323746
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with spacer plates and central screw
Product compatibility
SIEMENS EWN:5193007835000
Product details
| Weight | 311 g |
|---|---|
| Interface | HEIDENHAIN EnDat Interface |
| IP Classification | IP40 |
| Voltage | 3,6VDC ?C 14VDC |
| Working temperature | -40??C til +115??C |
| Country of origin | ?Germany |
