Mitsubishi

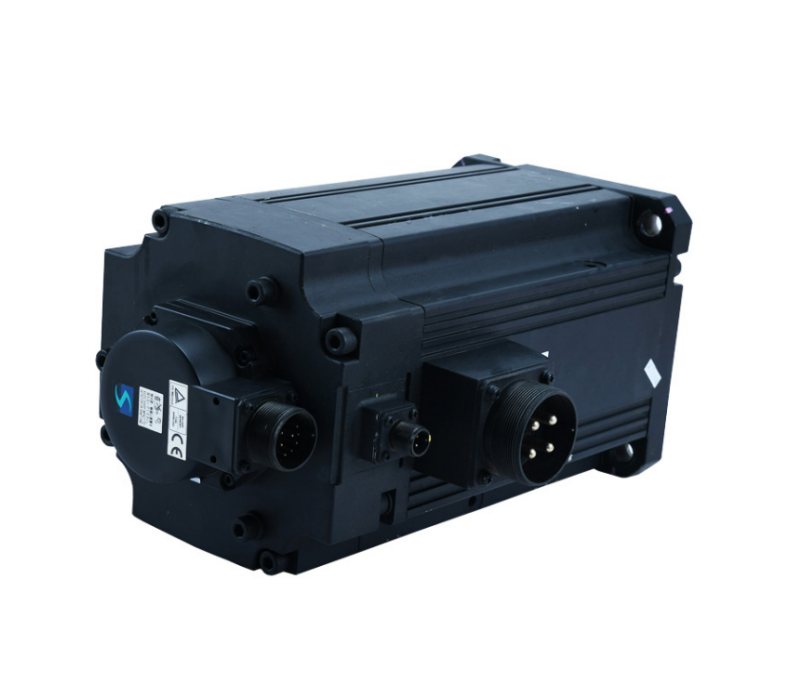

HC-SFS702B Mitsubishi AC servo motors
Model: HC-SFS702B Mitsubishi AC servo motors
Manufacturer : Mitsubishi …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- Manufacturer : Mitsubishi Electric
- Product No. : HC-SFS702B
- Product type : Servo Motor
- Recommended load/motor inertia moment ratio : 15 times the servo motor’s inertia moment maximum
- Speed/position detector : 17-bit encoder (Resolution per encoder/servo motor rotation: 131072 p/rev)
- Attachments : Oil seal
- Structure : Totally enclosed non ventilated
- Maximum torque (N·m [oz·in]) : 100 (14160)
- Rated speed (r/min) : 2000
- Maximum speed (r/min) : 2000
- Permissible instantaneous speed (r/min) : 2300
- Power rate at continuous rated torque (kW/s) : 69.7
- Rated current (A) : 35
- Maximum current (A) : 105
-
Net Height (mm) 93.91 mmNet Width (mm) 176 mmNet Depth (mm) 419 mmAmbient air temperature for operation 0…+40 °CAmbient air temperature for storage -15°C…+70 °C
- Shipping weight : 50 Kg
