GRTE18-P2462 SICK Sensor Intelligence

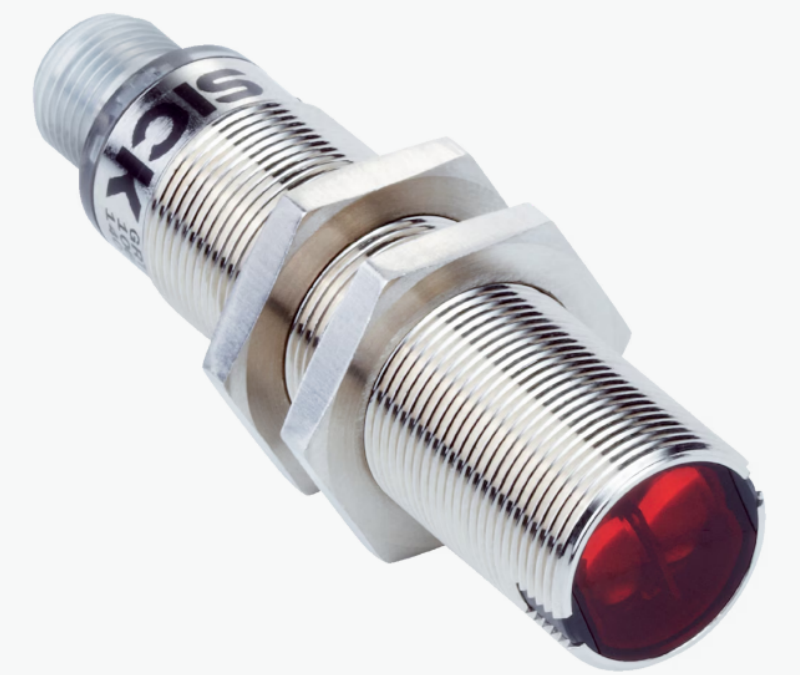

Model: GRTE18-P2462 SICK Sensor Intelligence
Functional principle Photo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Functional principle | Photoelectric proximity sensor |
| Functional principle detail | Energetic |
| Dimensions (W x H x D) | 18 mm x 18 mm x 73.5 mm |
| Housing design (light emission) | Cylindrical |
| Thread diameter (housing) | M18 x 1 |
| Optical axis | Axial |
| Sensing range max. | 5 mm … 1,000 mm 1) |
| Sensing range | 10 mm … 800 mm 1) |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 45 mm (800 mm) |
| Wave length | 650 nm |
| Adjustment | Potentiometer |
| Supply voltage UB | 10 V DC … 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | VS – (≤ 3 V) / approx. 0 V |
| Output current Imax. | ≤ 100 mA 3) |
| Response time | < 1,000 µs 4) |
| Switching frequency | 500 Hz 5) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 6)
B 7) D 8) |
| Protection class | III |
| Housing material | Metal, Nickel-plated brass and ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Fastening nuts (2 x) |
| Electromagnetic compatibility (EMC) | EN 60947-5-2 |
| Ambient operating temperature | –25 °C … +55 °C 9) |
| Ambient temperature, storage | –40 °C … +70 °C |
| UL File No. | E348498 |
