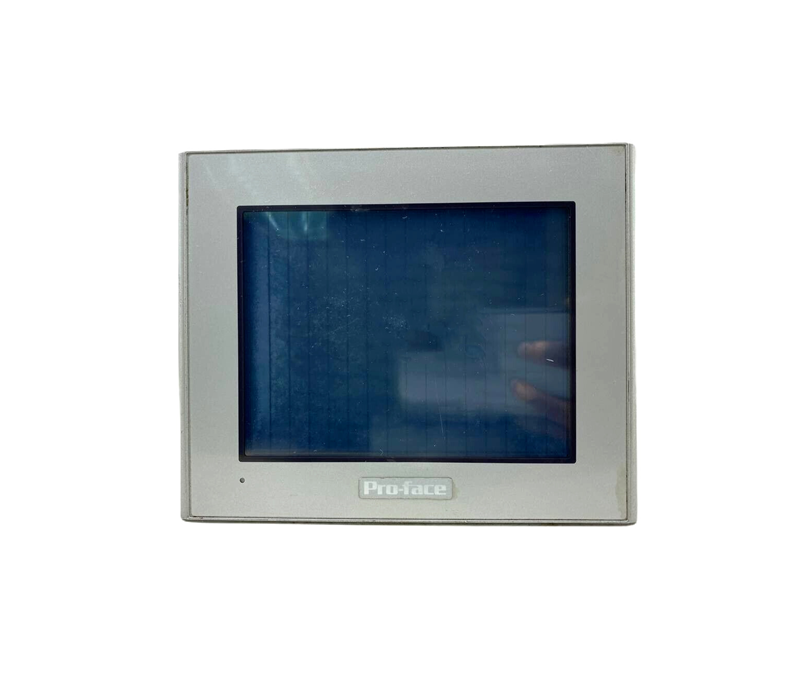

GP2301-LG41-24V GP2000 Series Products – Pro-face
Model: GP2301-LG41-24V GP2000 Series Products – Pro-face
Model (Global Code) GP2301…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Model (Global Code) | GP2301-LG41-24V (PFXGP2301LD) | ||
|---|---|---|---|
| Type | Monchrome LCD | ||
| Colors | Black and White (2 Shades)/ Black and White (8 Shades) (software control)*1 |
||
| Backlight | CCFL (Service life: more than 50,000 at 24 hr. operation) | ||
| Resolution | 320 × 240 pixels | ||
| Effective Display Area (mm) | 115.2(W) × 86.4(H) | ||
| Brightness Control | 4 levels of adjustment available via touch panel | ||
| Contrast Control | 8 levels of adjustment available via touch panel | ||
| Language Character Sets | ASCII: (Code page 850) Alphanumeric (incl. European characters) Chinese: (GB2312-80 codes) simplified Chinese fonts Japanese: ANK 158, Kanji : 6962 (JIS Standards 1 & 2) Korean: (KSC5601 – 1992 codes) Hangul fonts Taiwanese: (Big 5 codes) traditional Chinese fonts |
||
| Text | 8 × 8 dots | 40 char. × 30 rows | |
| 8 × 16 dots | 40 char. × 15 rows | ||
| 16 × 16 dots | 20 char. × 15 rows | ||
| 32 × 32 dots | 10 char. × 7 rows | ||
| Character Sizes*2 | 8 × 8 dots, 8 × 16 dots, 16 × 16 dots, 32 × 32 dots | ||
| Font Sizes | Width can be expanded 1 to 8 times. Height can be expanded 1/2*3, 1 to 8 times. |
||
| Application Memory | FLASH EPROM 1MB | ||
| Data Backup Memory | 128KB SRAM – uses lithium battery*4 | ||
| Touch Panel Resolution | 6 x 12 keys/ screen – 1 or 2 point touch | ||
| External Interface |
Serial Interface | Asynchronous Transmission Method: RS232C/RS422 Data Length: 7 or 8 bits Stop Bit: 1 or 2 bits Parity: None, Odd or Even Data Transmission Speed: 2400 to 115.2kbps*5 |
|
| CF Card Interface | 1 slot | ||
| Tool Connector | Asynchronous TTL level nonprocedure command I/F
Used for transferring data between the GP application software and the GP. Used for a variety of devices, including a bar-code reader. |
||
