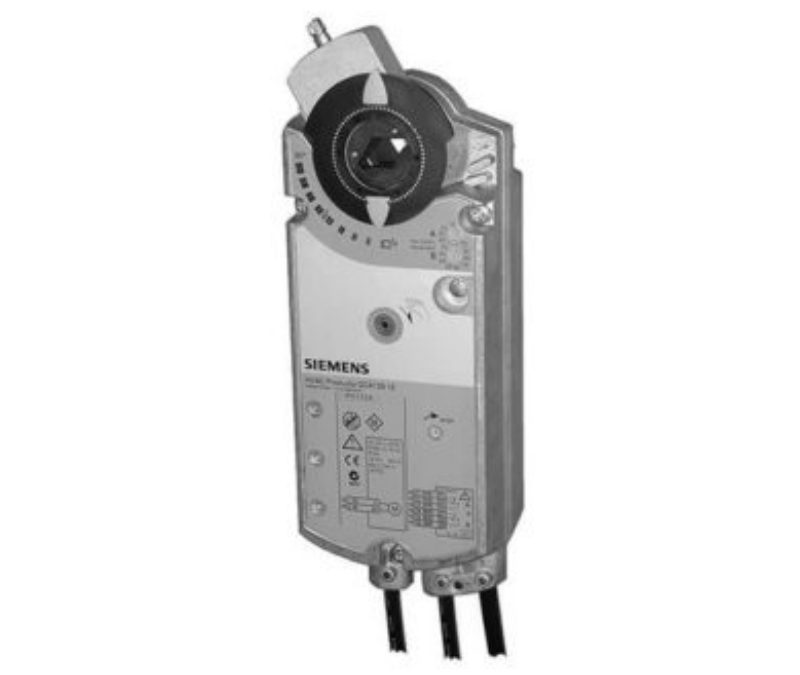

GCA161.1E Siemens Rotary Air Damper Actuator
Model: GCA161.1E Siemens Rotary Air Damper Actuator
Application Standard Dampe…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Application | Standard |
|---|---|
| Damper area | 3 m2 |
| Control | 0..10 VDC |
| Spring return | Yes |
| Power supply | 24 VAC/VDC |
| Torque | 18 Nm |
| Air damper area | 3 m² |
| Angular rotation | 90° |
| Power consumption | 7 VA, 5 W |
| Positioning time | Open:90 s, Close:15 s |
| Positioning signal | DC 0…10 V |
| Degree of protection | IP54 |
| Ambient temperature, operation | -32…55 °C |
| Medium temperature | -32…55 °C |
| Ambient humidity, operation | 95 % r.h. |
| Dimensions (W x H x D) | 100 x 313 x 71 mm |
| Operating voltage | AC 24 V, DC 24 V |
| Position feedback | DC 0…10 V |
| Auxiliary switch | 0 |
