Mitsubishi

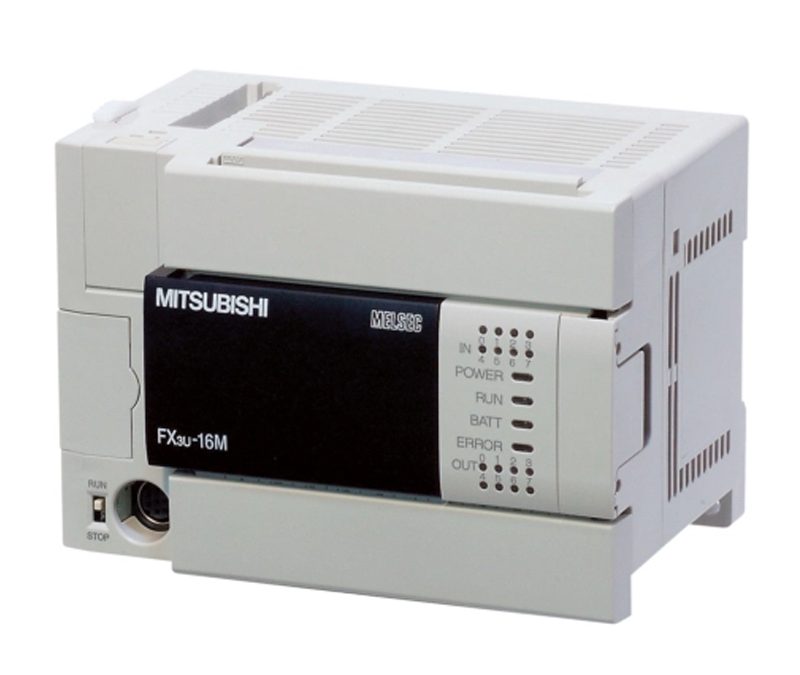

FX3U-16MR/DS Mitsubishi Electric 8 In / 8 Out Relay
Model: FX3U-16MR/DS Mitsubishi Electric 8 In / 8 Out Relay
FA-COM PLC: Main Unit Type…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
FA-COM PLC: Main Unit
Type FX3U
Power Supply (V) 24
Current Type DC
Program Memory 64K STEPS
Program Memory Unit RAM
Integrated Digital Inputs 8
Integrated Digital Outputs 8
Output Type RELAY
Local I/O Points 256
Local + Remote I/O Points 384
Expandable YES
Cycle Time LD (ns) 65
Cycle Time MOV (ns) 642
USB OPTION
RS-422 1
Power Consumption (W) 25
Buffer Battery YES
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
Series MELSEC-F SERIES
Product Dimensions & Weight
Width (mm) 130
Height (mm) 90
Depth (mm) 86
Weight (kg) 0,6
