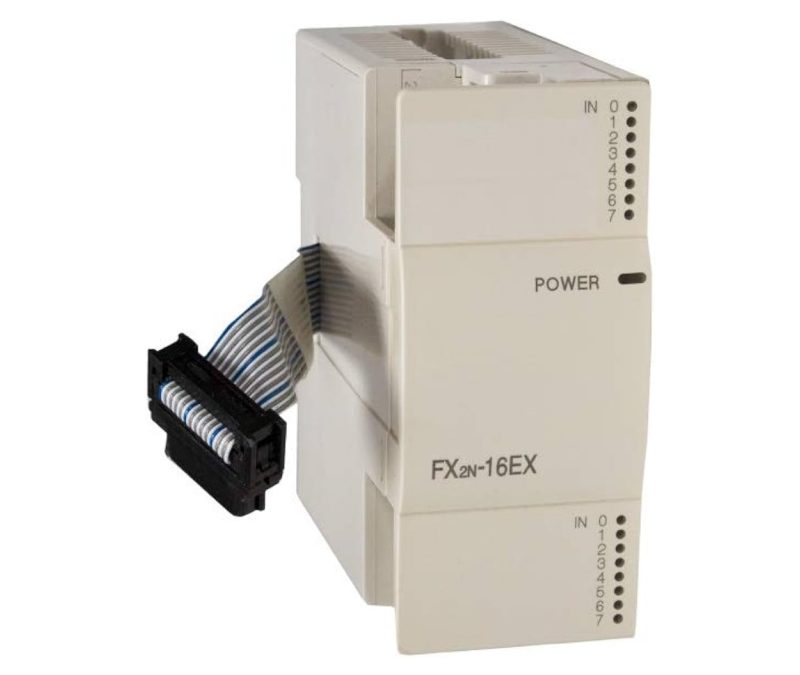

FX2N-16EX Mitsubishi Electric Input Extension Block
Model: FX2N-16EX Mitsubishi Electric Input Extension Block
Manufacturers Mitsubishi P…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Mitsubishi
- Product type : Input Extension Block
- Rated voltage : Internal power supply from the sequencer
- Number of input points : 16 points
- Input connection shape : Vertical terminal block (M3 screw)
- Input signal voltage : DC 24 V ± 10%
- Input impedance : 4.3 kO
- Input signal current : 5 mA / 24 VDC
- Input ON sensitivity current : 3.5 mA or more
- Input OFF sensitivity current : 1.5 mA or less
- Input response time : About 10 ms
- Input signal format : No-voltage contact input NPN or open collector transistor
- Input circuit insulation : Photocoupler insulation
- Input operation display : LED on the panel when input is ON
- Impact resistance : 147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2
- Dimensions(LxHxW):5.1 cm x 10.2 cm x 10.2 cm
- Weight :0.3kg
- Country of Origin: Japan
