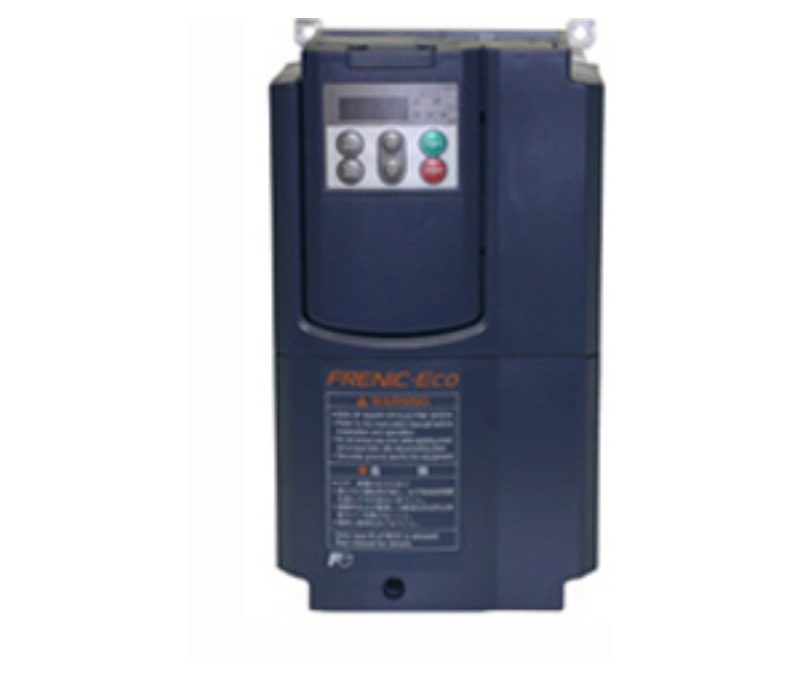

FRN160F1S-4C Fuji Inverter
Model: FRN160F1S-4C Fuji Inverter
Manufacturer: Fuji Electri…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Manufacturer: | Fuji Electric |
| Series: | Frenic Eco |
| Model: | FRN160F1S – 4E |
| Application: | pumps / fans |
| Capacity, kW: | 160 |
| Current, А: | 290 |
| Main power supply, V: | 380~480 |
| Phase: | 3 |
| Output frequency, Hz: | 25-120 |
| Enclosure: | IP 20 |
| Overload capacity, % per 1 min.: | 120 |
| Acceleration time, sec: | 0-3600 |
| Deceleration time, sec: | 0-3600 |
| EMC filter: | – |
| Braking unit: | – |
| Analog input: | voltage 0-10 V – two, current 4-20 mA – one |
| Digital input: | 7 |
| Analog output: | voltage 0-10 V – one, current 4-20 mA – one |
| Digital output: | transistor – 3 |
| Relay output: | 2 |
| RS485 (Modbus RTU): | optional |
| Starting torque: | 50% or higher |
| PID: | PID – regulation |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | – |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -25…..+65 |
| Dimensions (W x H x D), mm: | 530x740x315 |
| Weight, kg: | 67 |
