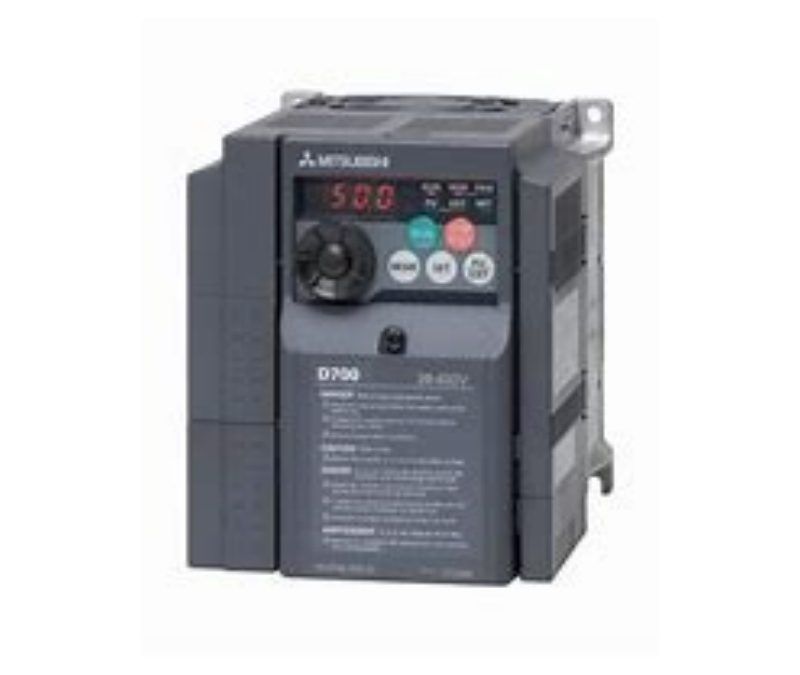

FR-D740-120SC-EC Mitsubishi Inverter
Model: FR-D740-120SC-EC Mitsubishi Inverter
Series FR-D700 SERIES Type…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Series | FR-D700 SERIES |
|---|---|
| Type | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 12 |
| Rated Motor Capacity ND (kW) | 5,5 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Display | BUILT-IN |
| PLC Function | NO |
| Integrated Analogue Outputs | 1 |
| RS-485 | 1 |
| Power Loss ND (W) | 240 |
| Frequency Range (Hz) | 0,2–400 |
| Integrated DC Choke | NO |
| Display Type | 4 DIGITS LED |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Standby Power Consumption (W) | 13,5-22,5 |
| Protection Class | IP20 |
Product Dimensions & Weight
| Width (mm) | 220 |
|---|---|
| Height (mm) | 150 |
| Depth (mm) | 155 |
| Weight (kg) | 3,1 |
