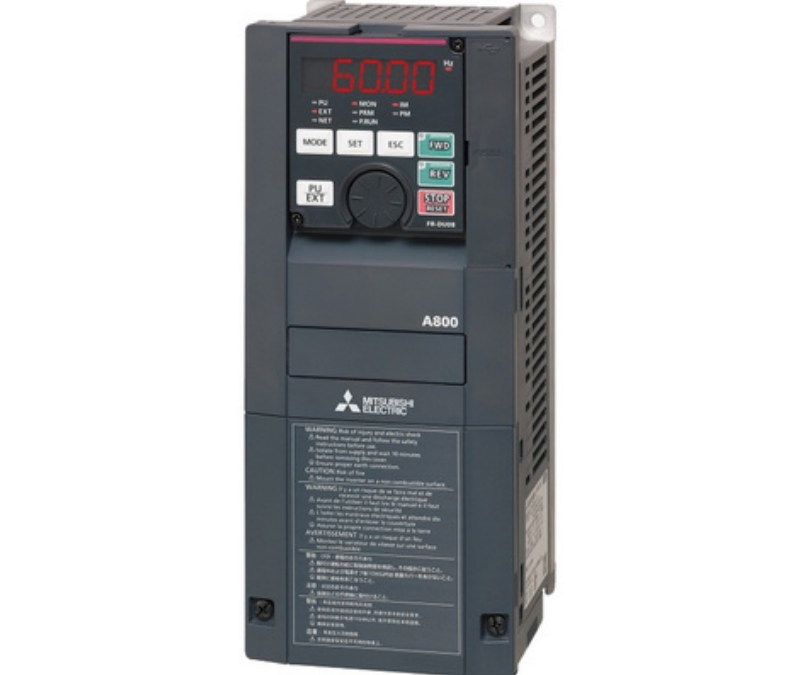

FR-A820-7.5K-1 Mitsubishi Plus Drive
Model: FR-A820-7.5K-1 Mitsubishi Plus Drive
Technical Specification Ma…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical Specification
| Manufacturer: | Mitsubishi Electric |
| Series: | FR-A800 Plus |
| Model: | FR-A820-7.5K-1-60CRN |
| Application: | cranes |
| Capacity, kW: | 7,5 |
| Current, А: | 33 |
| Main power supply, V: | 200-240 |
| Phase: | 3 |
| Output frequency, Hz: | 0,2-590 |
| Enclosure: | IP20 |
| Overload capacity, % per 1 min.: | 150 |
| Acceleration time, sec: | 0-3600 |
| Deceleration time, sec: | 0-3600 |
| Braking unit: | built-in braking transistor |
| Analog input: | 3 |
| Digital input: | 1 |
| Analog output: | 2 |
| Digital output: | 1 multi-functional |
| Relay output: | 1 multi-functional |
| RS485 (Modbus RTU): | RS-485 |
| Starting torque: | 200% at 0,3 Hz |
| PID: | + |
| V/f control mode: | + |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+50 |
| Storage temperature, °С: | -20…..+65 |
| Dimensions (W x H x D), mm: | 220x260x170 |
| Weight, kg: | 6,7 |
