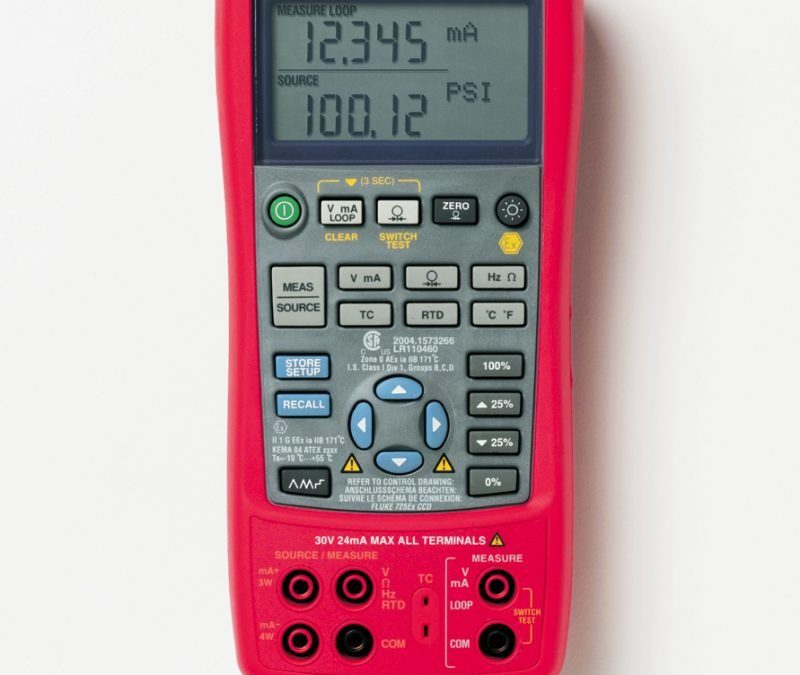

Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator
Model: Fluke 725Ex Intrinsically Safe Multifunction Process Calibrator
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | Fluke 725Ex |
| Brand | Fluke |
| Product Type | Intrinsically Safe Multifunction Process Calibrator |
| Safety Certifications | Class 1 Div. 1 Groups B, C, D; Class 1 Zone 0 AEx/Ex ia IIB 171 °C (Ta=-10°C…+55°C) |
| Measurable Parameters | Volts DC, mA, RTDs, thermocouples, frequency, ohms, pressure (with 750PEx modules) |
| Source/Simulatable Parameters | Volts DC, mA, RTDs, thermocouples, frequency, ohms |
| Simultaneous Function | 2-channel (Channel A: Measure; Channel B: Measure/Source) |
| Loop Supply | Internal loop supply for powering transmitters |
| Max Pressure Measurement | 3,000 psi/200 bar (with Fluke 750PEx Pressure Modules) |
| Operating Temperature | -10 °C to +55 °C |
| Storage Temperature | -40 °C to +71 °C |
| Dimensions (L×W×D) | 7.9 in × 3.8 in × 1.9 in (200 mm × 96 mm × 47 mm) |
| Net Weight | 23 oz (650 g) |
| Battery | Four AA alkaline batteries; typical battery life: 25 hours |
| EMC Compliance | EN50082-1:1992, EN55022:1994 Class B |
| Included Accessories | Protective red holster, TL75 Test Leads, AC175 alligator clips, stackable test leads, Certificate of Calibration, CCD control drawing, Statement of Quality Assurance Practices |
