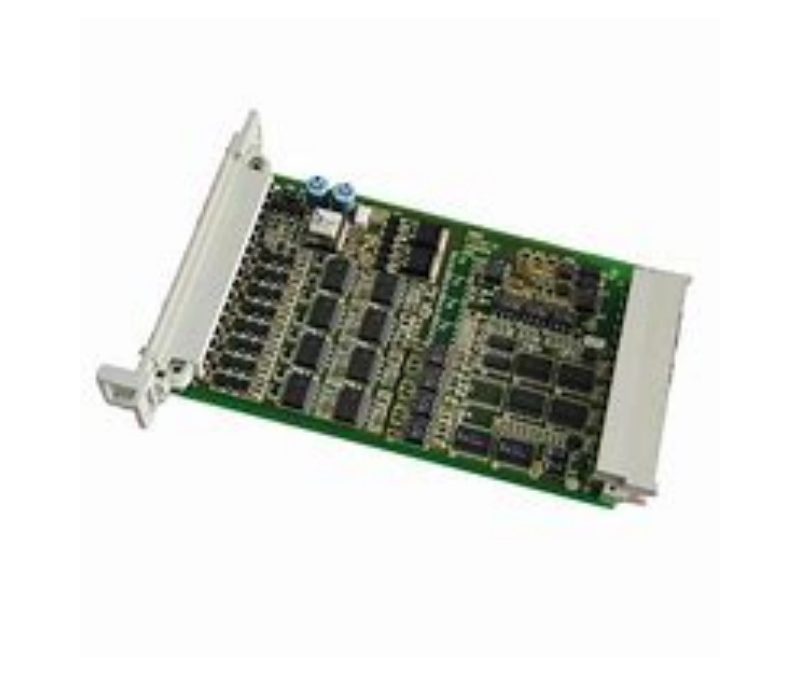

FC-GMLA16 Honeywell analog input module

The Honeywell FC-GMLA16 is a 16-channel analog input module designed for converting 4-20 mA current signals into digital values. This smart module offers a range of valuable features, including:

1. Fault Detection: Capable of detecting open circuits and short circuits on each of its 16 channels.
2. Linearization: Can linearize input signals to compensate for non-linearities typically found in sensor outputs.
3. Filtering: Provides signal filtering capabilities to eliminate unwanted noise.
4. Calibration: Offers the option for calibration to a known reference value.

This module features a single isolated channel, making it particularly suitable for applications where the input signal originates from a hazardous area. It operates on a 24 VDC power supply with a modest current consumption of 20 mA. Its operating temperature range spans from -40 to 70°C, and it boasts an ingress protection rating of IP65. In terms of dimensions, the module measures 96 x 96 x 60 mm.

Technical Specifications:

• Part Number: FC-GMLA16
• Model: 16ch AI 4-20mA FTA Single ch. CC
• Number of Channels: 16
• Input Signal: 4-20 mA current
• Fault Detection: Yes
• Linearization: Yes
• Filtering: Yes
• Calibration: Yes
• Power Supply: 24 VDC
• Current Consumption: 20 mA
• Temperature Range: -40 to 70°C
• Ingress Protection Rating: IP65
• Dimensions: 96 x 96 x 60 mm
