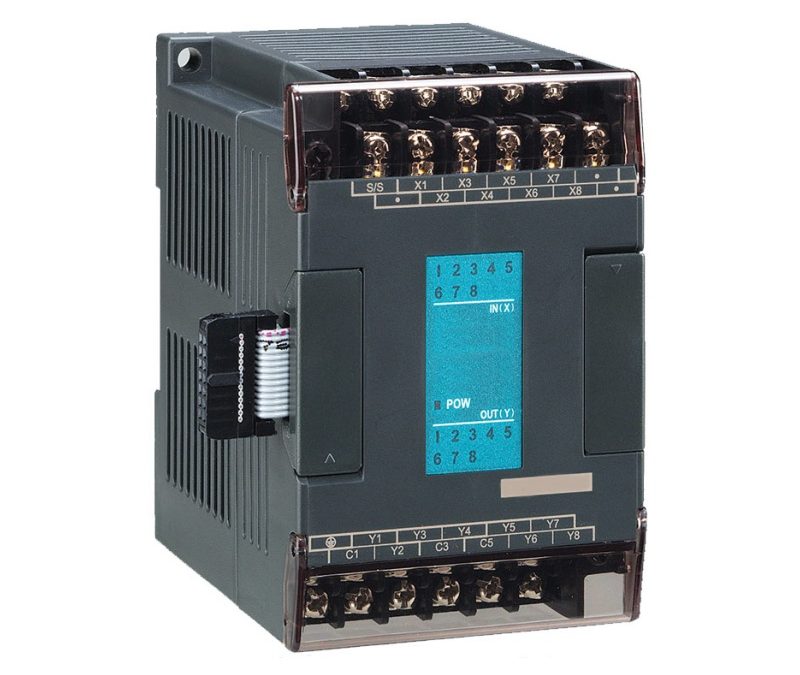

FBs-TC16 FATEK Temperature Measurement Module

Introduction
FBs-TC16 is one of the temperature input
modules of FATEK FBs series PLC. It
provides 16 channels of thermo-couple
temperature measurement input with 0.1 ??
or 1 ?? resolution. The scan rate for 0.1 ??
resolution is 6 seconds, while the scan rate
for 1 ?? resolution is 3 seconds. The cold
junction compensation is carried out inside
the module, also it provides wire broken
detection feature. To give the user more
choices for the selection of thermo-couple
type and in order to enhance the noise
immunity, the isolation scheme is per channel
basis. All the optional features of this module
are software configurable, there are no
hardware jumpers or switches for user to
setup.
Specifications
Total Channels – 16 CH
Resolution- 0.1 ?? or 1 ??
I/O Points Occupied ?C
1 RI(Input Register)
8 Discrete Output(DO)
Conversion Time- 3 or 6 Seconds
Accuracy- ??(1 %+1??)
Sensor Type- J,K,R,S,E,T,B,N
Software Filter- Moving average
Average Samples- 1,2,4,8 configurable
Compensation- Built in cold junction compensation
Measurement RangeJ: -200~1200?? K: -200~1200??
R: 0~1800?? S: 0~1700??
E: -190~1000?? T: -190~380??
B: 350~1800?? N: -200~1000??
Isolation- Transformer(Power) and photo-coupler(Signal)
Indicator(s) ?C 5V PWR LED
Supply Power- 24V-15%/+20%, 2VA
Internal Power Consumption- 5V, 35mA
Operating Temperature- 0 ~ 60 ??
Storage Temperature- -20 ~ 80 ??
Dimensions- 90(W)x90(H)x80(D) mm
