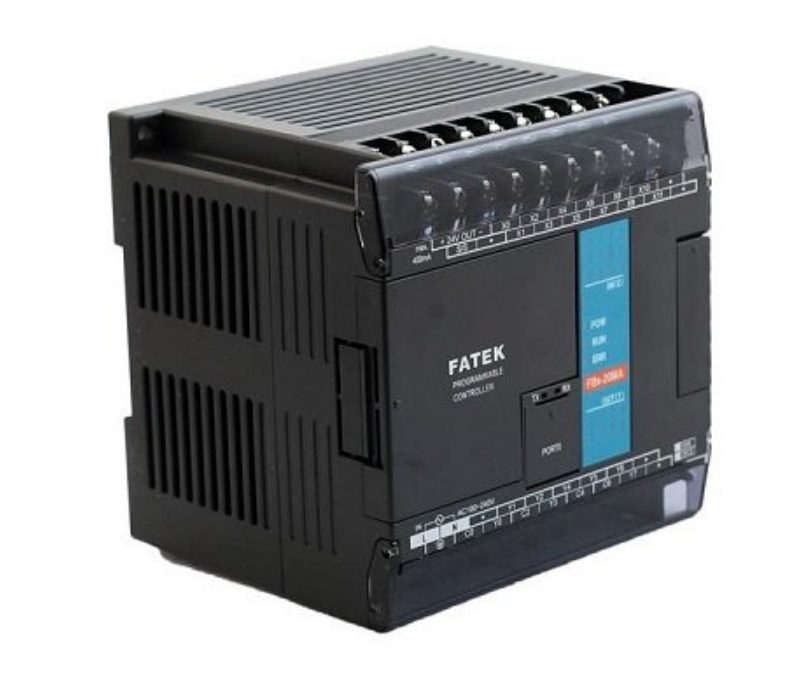

FBS-20MAR2-AC Fatek PLC Controller
Model: FBS-20MAR2-AC Fatek PLC Controller
Technical specifications D…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Technical specifications | |
| Digital Inputs | |
| Voltage at the inputs | 24Vdc +/- 10% |
| Total entries | 4 Medium-Low Speed ??(5KHz) 8 Low Speed |
| Input current | 7 mA |
| Indication of inputs | By LEDs |
| Isolation | Optocoupler |
| Relay outputs | |
| Total departures | 8 Relay or transistor (choose in order code) |
| General specifications | |
| Execution speed | 0.33µs |
| Program capacity | 20k Words |
| Program memory | FLASH ROM or SRAM + lithium battery for support |
| Instruction series | Maximum of 36 instructions |
| Number of functions | 326 instructions (126 types) |
| Flowchart Commands | 4 instructions |
| Communication | |
| Integrated port | RS232 Communication: Slave mode |
| Expandable | 3 ports Port 1 to 4 (RS-485, RS-232 or Ethernet) Communication: Slave / Master mode Proprietary protocol or Modbus RTU |
| Hardware | |
| Real time clock / Calendar | No |
| Feeding | 100 to 240Vac |
| Consumption | 21W |
| Wiring mechanism | 7.62mm terminal block |
| Dimensions | 90mm x 60mm x 80mm |
| Environmental characteristics | |
| Operating temperature: | Closed space Minimum 5ºC, Maximum: 40ºC Open space Minimum 5ºC, Maximum: 55ºC |
| Storage temperature | -25ºC ~ + 70ºC |
