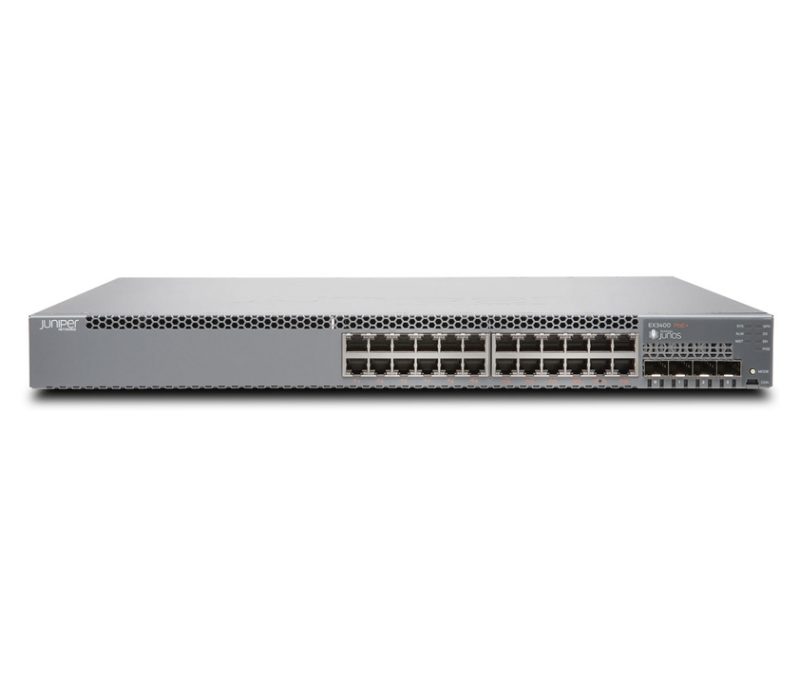

EX3400-24P Juniper Switch

OTHER OTHER

Model: EX3400-24P Juniper Switch

Model: EX3400-48T/P Physic…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Model:	EX3400-48T/P
Physical Specifications
Dimensions (W x H x D)	17.4 x 1.72 x 13.8 in (44.2 x 4.4 x 35 cm)
System Weight	EX3400 switch (no power supply or fan module): 10.49 lb (4.76 kg) maximum EX3400 switch (with single power supply and two fan modules): 12.65 lb (5.74 kg) maximum 150 W AC power supply: 1.43 lb (0.65 kg) 600 W AC power supply: 1.82 lb (0.83 kg) 920 W AC power supply: 1.87 lb (0.85 kg) 150 W DC power supply: 1.43 lb (0.65 kg) Fan module: 0.16 lb (0.07 kg)
Rack mountable	1 Rack Unit
Backplane	160 Gbps (with QSFP+ ports) or 80 Gbps (with SFP+ ports) Virtual Chassis interconnect to link up to 10 switches as a single logical device
Uplink	Fixed 4-port uplinks can be individually configured as GbE (SFP) or 10GbE (SFP+) ports; 2 x 40G QSFP+ ports
Hardware Specifications
Switching Engine Model	Store and forward
DRAM	2 GB with ECC
Flash	2 GB
CPU	Dual Core 1 GHz
GbE port density per system	30 (24 host ports + four 1/10 GbE and two 40GbE uplink ports)

Packet-Switching Capacities (Maximum with 64-Byte Packets)	288 Gbps
Power Options
Power Supplies	EX3400-24T/EX3400-24T-DC: 150W EX3400-24P: 600W
Environment
Operating Temperature	32° to 113° F (0º to 45º C)
Storage Temperature	-40º to 158º F (-40º to 70º C)
Relative Humidity (Operating)	10% to 85% (noncondensing)
Relative Humidity (Non-Operating)	0% to 95% (noncondensing)
Altitude (Operating)	Up to 10,000 ft (3048 m)
Altitude (Non-Operating)	Up to 16,000 ft (4877 m)
