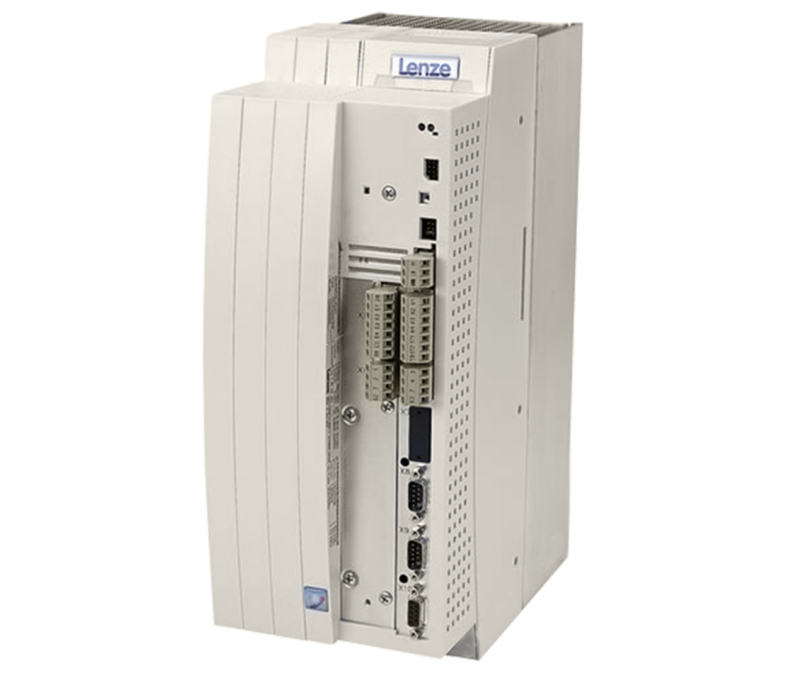

EVS9325-ESV004 Lenze Servo Drive
Model: EVS9325-ESV004 Lenze Servo Drive
Manufacturers Lenze 9300 s…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Lenze
- 9300 servo inverter
- Axis modules
- Motor power(asynchronous motor, 4-pole) PN [kW]:5.5
- Mains voltage range
- UNetz [V] : 3/PE AC 320 V -0% … 528 V +0%; 45 Hz -0% … 65 Hz +0%
- Alternative DC supply
- UDC [V] : DC 460-0% … 740 V+0%
- Rated mains current
- With mains choke 1) INetz [A]: 12
- Without mains choke INetz [A]: 16.8
- Rated output current
- 8 kHz IN [A] 13
- 16 kHz IN [A] 9.7
- Max. output current
- 8 kHz Imax [A] 19.5
- 16 kHz Imax [A] 14.6
- Brake chopper data
- Continuous braking power P [kW]: 11, depending on the external brake resistor
- Peak braking power PBRmax [kW]:25
- Min. brake resistance R [Ohm]: 27 ± 10%
- Power loss PV[W] : 260
- Permissible motor cable length Shielded l [m] : 50
- Dimensions (L x W x H ): 13.7 cm x 38.1 cm x 25.1 cm
- Weight: 7.0kg
- Country of Origin: Germany
