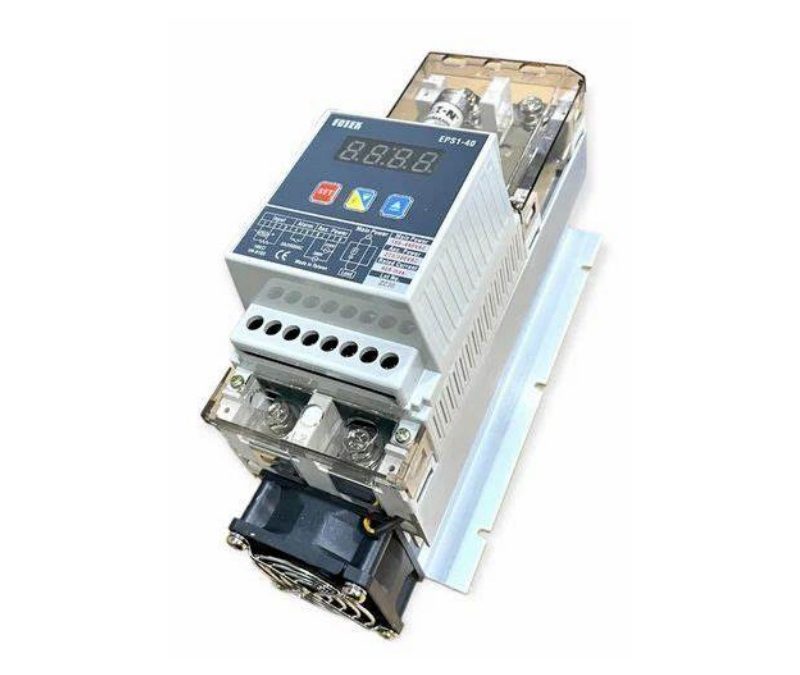

eps1-80 Fotek Digital Power Regulator

Model EPS1-40 EPS1-60 EPS1-80
Rated Current 40A max. 60A max. 80A max.
Protection Fuse 40A. 63A. 80A.
Surge Current
Duration
410A 1200A 1500A
Min. Block Voltage 600VAC 1600VAC
Cooling Fan 60??60 / 12VDC
Main Power Supply 180~440VAC 50/60Hz
Aux. Power Supply 220/380VAC ??20% 50/60Hz
General Data
Leakage Current 25mA max.
Surge Resistance Over 4KV
Noise Resistance ??2KV / 1 ??s
Input Method
4~20mA/0~20mA/1~5V/2~10V/0~5V/0~10V or VR-10K ??
selectable
Control Method
Zero cross control or phase angle control selectable ;
Excluding EPS2- ?????? & TPS2- ??????
Output Control Auto output or manual output selectable
Output range 0~100%
Input resolution 0.39%
Output low limit 0~100% (L.000~L.100) settable
Output high limit 0~199% (H.000~H.199)settable
Soft Start 0~199 sec (t.00~t.199) settable
Dielectric Strength Over 2.5KV
Isolation Strength Over 100M?? / 500VDC
Operating temp -20??C ~ +80 ??C ; 35~85%RH
Housing Material Intensive PC+ABS (UL-94V0)
