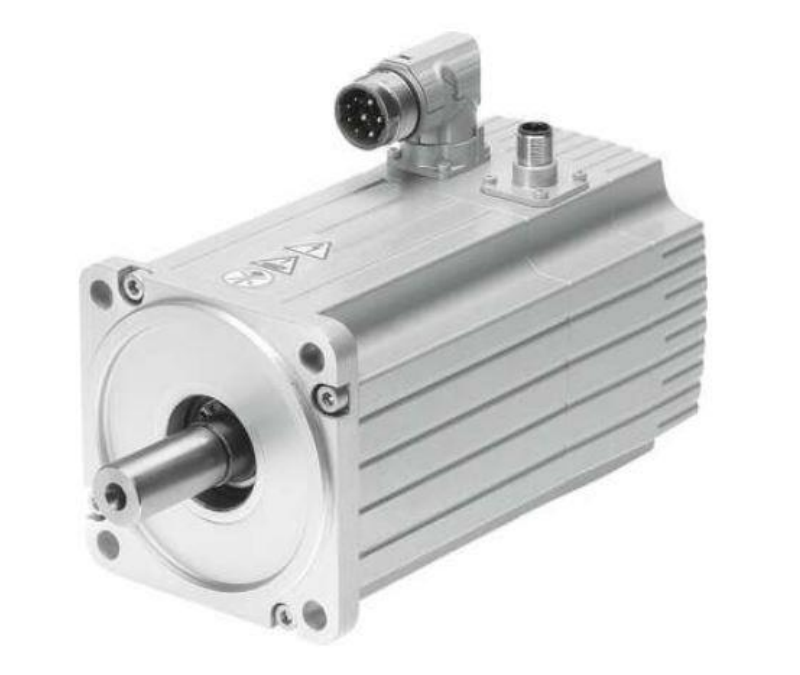

EMMS-AS-55-S-TMB Festo Servo motor

OTHER OTHER

Model: EMMS-AS-55-S-TMB Festo Servo motor

Technical Information See …

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Technical Information

Brake: With Brake
Brake Holding Torque: 0.8Nm
Brake Rated Output: 10W
Brake Supply Voltage: 24V DC
Electrical Connection: Terminal Box
Encoder Type: Absolute Encoder, Multiturn
IP Rating: IP54 Motor Shaft, IP65 Motor Housing Inc. Connector
Length: Short
Max. Rotational Speed: 9800rpm
Motor Flange Size: 55mm
Motor Nominal Current: 0.83A
Motor Supply Voltage: 360V DC
Motor Type: Servo Motor
Nominal Rotary Speed: 7400rpm
Nominal Torque: 0.34Nm
Output Shaft: Smooth Shaft
Manufacturer: Festo
Range: EMMS
Winding: Low-voltage, Standard
Commodity Code: 85015100
Country of Origin: IN
Weight: 1.4780Kg
Pack Quantity: 1
