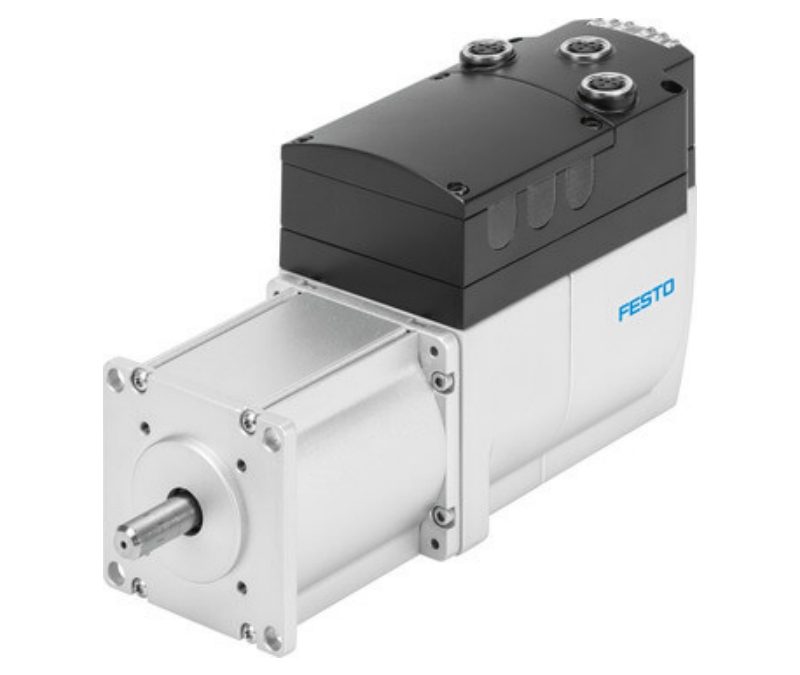

EMCA-EC-67-L-1TE-CO-CS FESTO Drive
Model: EMCA-EC-67-L-1TE-CO-CS FESTO Drive
KC characters KC EMC Type …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| KC characters | KC EMC |
|---|---|
| Type code | EMCA |
| Controller operating mode | PI speed controllerPWM MOSFET power output stageP position controllerCascade controller withPI current regulator |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor measuring principle | Magnetic |
| Protective function | Temperature monitoringVoltage failure detectionCurrent monitoringI²t monitoringContouring error monitoringSoftware end position detection |
| Safety function | Safe torque off (STO) |
| Safety integrity level (SIL) | Safe torque off (STO)/SIL 2 |
| Performance Level (PL) | Safe torque off (STO)/category 3, performance level d |
| Display | LED |
| Max. rotational speed | 3500 1/min |
| Nominal rotary speed | 3100 1/min |
| Braking resistor, external | 6 Ohm |
| Diagnostic coverage | 0.9 |
| Characteristics of digital logic outputs | Not galvanically isolatedFreely configurable in some cases |
| Hardware fault tolerance | 1 |
| Max. current of digital logic outputs | 100 mA |
| Max. positive test pulse with 0 signal | 10000 µs |
| Max. negative test pulse on 1 signal | 600 µs |
| Motor nominal power | 120 W |
| DC nominal voltage | 24 V |
| Nominal current | 6.9 A |
| Parameterization interface | Ethernet |
| SFF safe failure fraction | > 90 % |
| Max. number of positioning sets | 64 |
| Rotor position sensor resolution | 12 bit |
| Motor peak power | 158 W |
| Peak current | 10.2 A |
| Permissible voltage fluctuations | +/- 20 % |
| Certificate issuing authority | German Technical Control Board (TÃœV) 01/205/5514.00/16UL E331130 |
| CE marking (see declaration of conformity) | as per EU machinery directiveAs per EU EMC directive |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 1 – Low corrosion stress |
| Storage temperature | -25 °C … 70 °C |
| Relative air humidity | 0 – 95 %Non-condensing |
| Degree of protection | IP54 |
| Ambient temperature | 0 °C … 50 °C |
| Note on ambient temperature | Above an ambient temperature of 20 °C, the power must be reduced by 1.75% per °C. |
| Certification | RCM compliance markc UL us – Recognized (OL) |
| Rotor mass moment of inertia | 0.175 kgcm² |
| Nominal torque | 0.37 Nm |
| Peak torque | 0.85 Nm |
| Permissible axial shaft load | 60 N |
| Permissible radial shaft load | 100 N |
| PFH | 0.000000001 |
| PFD | 0.0000186 |
| Proof test interval | 20 y |
| Product weight | 1900 g |
| Number of digital logic outputs 24Â VÂ DC | 2 |
| Number of digital logic inputs | 2 |
| Communication profile | CiA402FHPP |
| Logic input specification | Based on IEC 61131-2 |
| Work range of logic input | 24 V |
| Characteristics of logic input | Galvanically connected to logic potential |
| Ethernet, supported protocols | TCP/IP |
| Input switching logic | PNP (positive switching) |
| Switching logic at outputs | PNP (positive switching) |
| Type of mounting | With through-holeScrewed tightly |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
