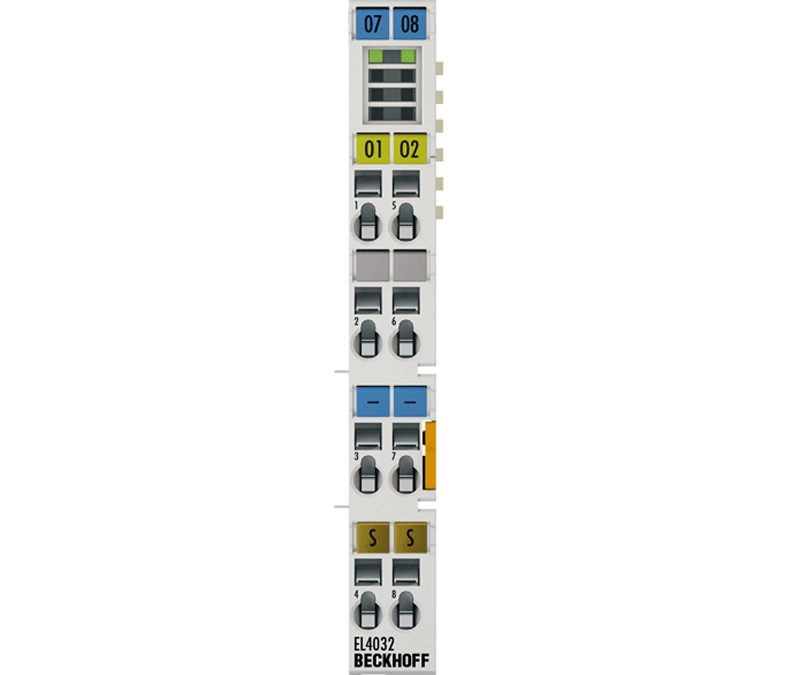

EL4032 EtherCAT Terminal 2-channel analog output
Model: EL4032 EtherCAT Terminal 2-channel analog output
Connection technology 2-wi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Connection technology 2-wire, single-ended
Number of outputs 2
Power supply 24 V DC via power contacts
Signal voltage -10…+10 V
Distributed clocks yes
Distributed clock precision << 1 µs
Load > 5 kΩ (short-circuit proof)
Output error < 0.1 % (relative to end value)
Resolution 12 bit
Electrical isolation 500 V (E-bus/signal voltage)
Conversion time ~ 150 µs
Current consumption power contacts typ. 40 mA
Current consumption E-bus typ. 140 mA
Bit width in the process image 2 x 16 bit AO output
Special features Optional watchdog: user-specific output value with ramp; user synchronization can be activated.
Weight approx. 55 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX, IECEx
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
