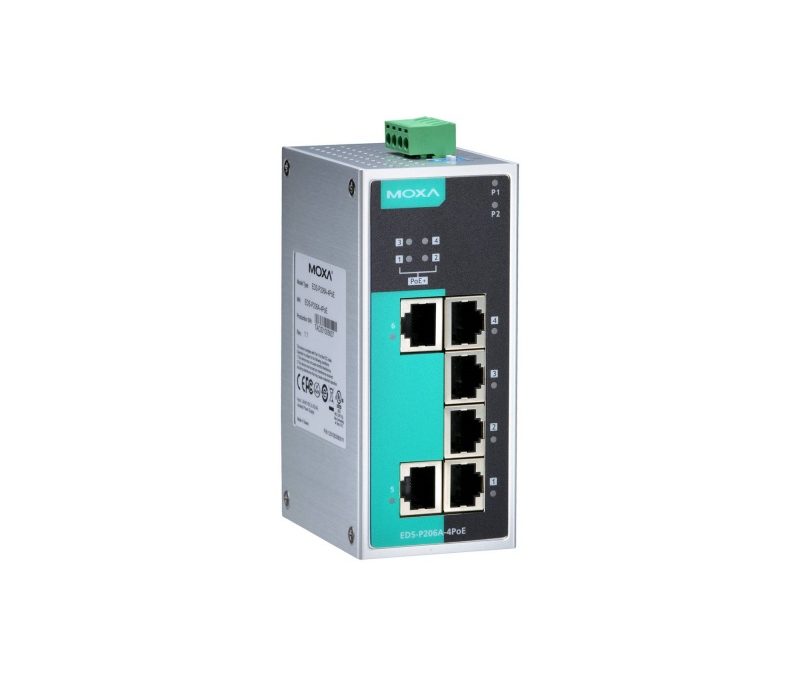

EDS-P206A-4POE Moxa Ethernet switches
Model: EDS-P206A-4POE Moxa Ethernet switches
Packet Buffer Size 768 kbi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
-
Packet Buffer Size
768 kbits
-
MAC Table Size
2 K
-
Processing Type
Store and Forward
Power Parameters
-
Input Current
5.55 A @ 24 VDC
-
Connection
1 removable 4-contact terminal block(s)
-
Operating Voltage
12 to 57 VDC
-
Input Voltage
12/24/48 VDC
Redundant dual inputs -
Power Budget
Max. 120 W for total PD consumption
Max. 30 W for each PoE port -
Power Consumption (Max.)
Max. 13.2 W full loading without PDs’ consumption
-
Reverse Polarity Protection
Supported
-
Overload Current Protection
Supported
Physical Characteristics
-
Housing
Metal
-
IP Rating
IP30
-
Dimensions
50.3 x 114 x 70 mm (1.98 x 4.53 x 2.76 in)
-
Weight
375 g (0.83 lb)
-
Installation
DIN-rail mounting
Wall mounting (with optional kit)
