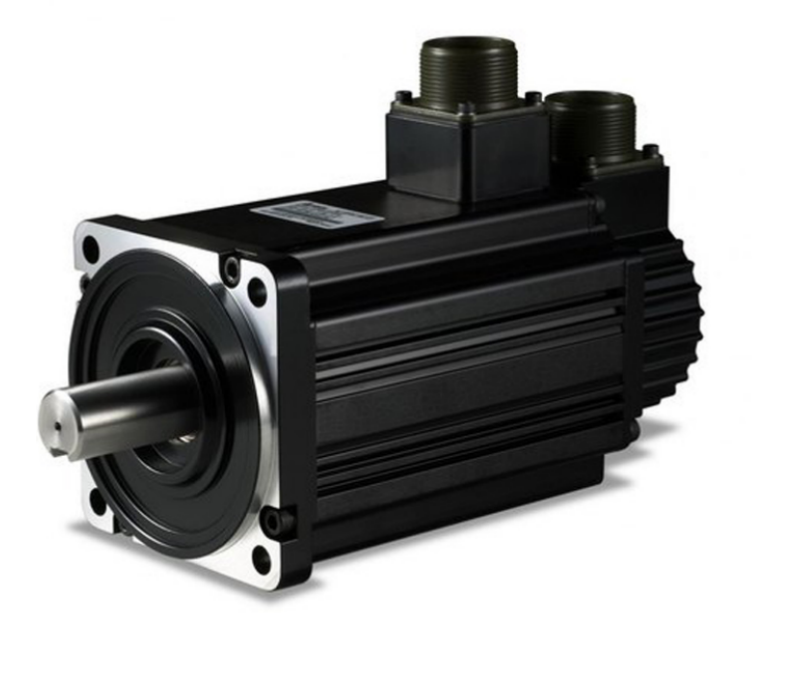

ECMA-E21310RS Delta AC Servo Motor

OTHER OTHER

Model: ECMA-E21310RS Delta AC Servo Motor

Supply voltage : (AC) 220 …

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Supply voltage : (AC) 220 V
Rated current : 5.6 A
Maximum current : 16.8 A
Rated active power (kW) : 1000W / 1 kW
Power consumption : 19 W
Resistance : 0.47 Ω
Net weight : 7 kg
Resolution : 17-bit incremental encoder
- Manufacturer : DELTA
- Product No. : ECMA-E21310RS
- Product type : Permanent-magnet Synchronous Servo (Rotary) Motors
- Product Name ECM: Electronic Commutation Motor
- Driving Type A: AC Servo
- Name of the Series Rated Voltage / Rated Speed : E = 220V / 2,000 r/min
- Encoder Type : 2 = Incremental, 17-bit
- Motor Frame Size : 13 = 130 mm
- Rated Power Output : 10 = 1.0 kW
- Keyway (with fixed screw holes) : R = w/o Brake With Oil Seal
- S: Standard Shaft Diameter
- Weight : 7 Kg
- Shipping weight : 9 Kg
