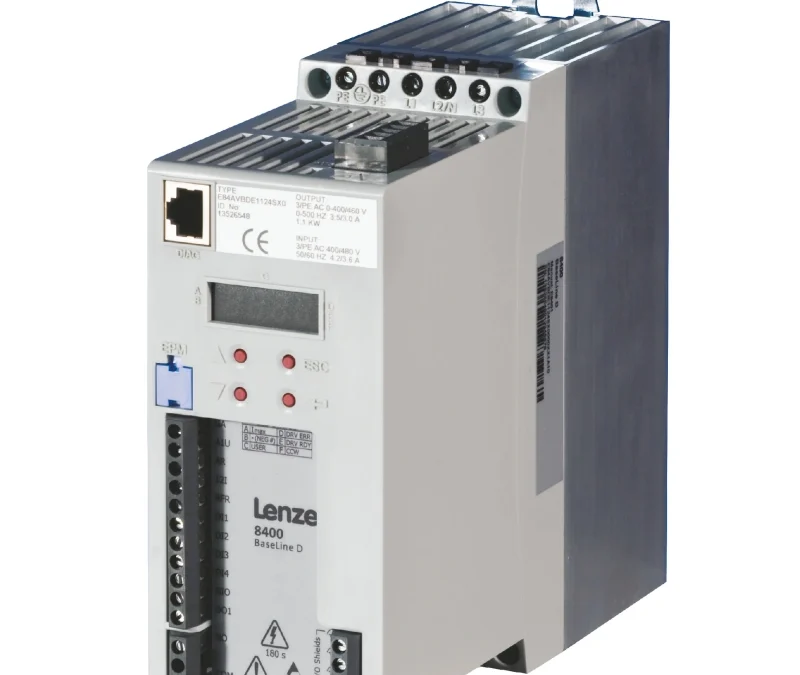

E84AVBDE3024SX0 Lenze 8400 BaseLine
Model: E84AVBDE3024SX0 Lenze 8400 BaseLine
Technical Specification Ma…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical Specification
| Manufacturer: | Lenze |
| Series: | 8400 BaseLine |
| Model: | E84AVBDE3024SX0 |
| Application: | pumps / fans |
| Capacity, kW: | 3 |
| Current, А: | 7.3 |
| Main power supply, V: | 400 |
| Phase: | 3 |
| Output frequency, Hz: | 0-300 |
| Enclosure: | IP20 |
| EMC filter: | optional |
| Braking unit: | optional external brake module/resistor |
| Analog input: | 1 |
| Digital input: | 4 |
| Analog output: | – |
| Digital output: | 1 |
| Relay output: | 1 |
| RS485 (Modbus RTU): | optional CanOpen |
| PID: | – |
| V/f control mode: | + |
| Vector control with feedback: | – |
| Sensorless vector control: | + |
| Operation temperature, °С: | -10…..+40 |
| Storage temperature, °С: | -25…..+60 |
| Dimensions (W x H x D), mm: | 70x244x162 |
| Weight, kg: | 1,9 |
