E6C3-AG5C 1024P/R 2M Omron Slim Encoder with Diameter Datasheet
Model: E6C3-AG5C 1024P/R 2M Omron Slim Encoder with Diameter Datasheet
Manufacturers OMRON Produc…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
OMRON
Product Description

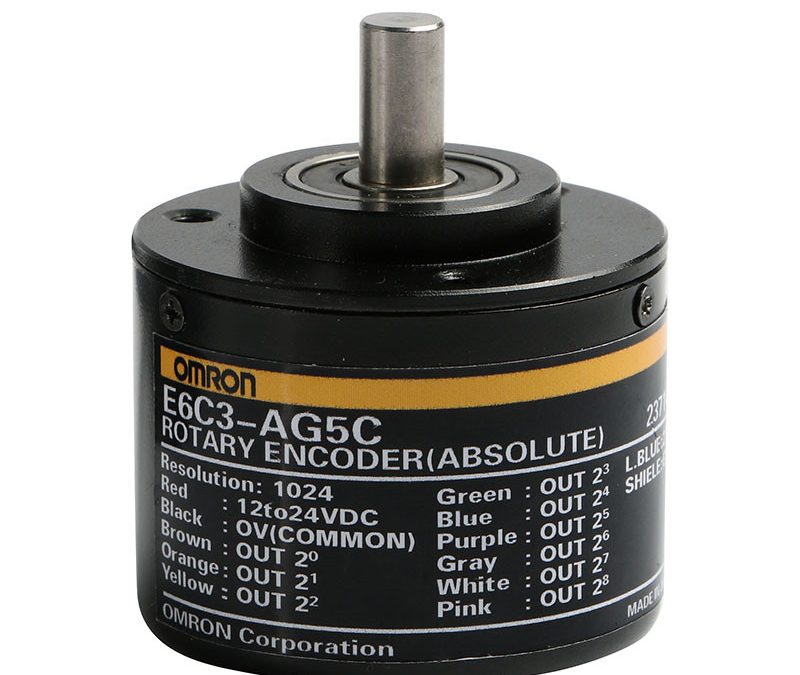

- Categorise : Absolute Shaft model
- Diameter : 50 mm dia.
- Power supply voltage : 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max.
- Current consumption : 70 mA max.
- Resolution : 1024 P/R
- Inrush current : Approx. 6 A (0.8 ms)
- Output code : Gray code
- Control outputOutput type : NPN open collector
- Load power supply voltage : 30 VDC max.
- Sink current : 35 mA max.
- Residual voltage : 0.4 V max. (at sink current 35 mA)
- Logic : Negative logic (high = 0, low = 1)
- Direction of rotation : Output code increases for CW (as viewed from end of shaft)
- Positioning signal : Not equipped
- Strobe signal : Not equipped
- Parity signal : Not equipped
- Max. response frequency : 20 kHz
- Rise and fall times of output : 1 µs max. (Cable length: 2m, Sink current 35 mA)
- Starting torque : Room temperature: 10 mN.m max.
: Low temperature: 30 mN.m max. - Moment of inertia : 2.3 x 10-6 kg.m2 max.
- Shaft loading : Radial: 80 N
: Thrust: 50 N - Degree of protection : IEC: IP65
: Company standard: Oil resistance - Connection method : Pre-wired models (Cable length: 2 m)
- Material : Case: Aluminum
: Main Unit: Aluminum
: Shaft: SUS303 - Accessories : Instruction manual
- Weight (packed state) : Approx. 300 g
