Omron

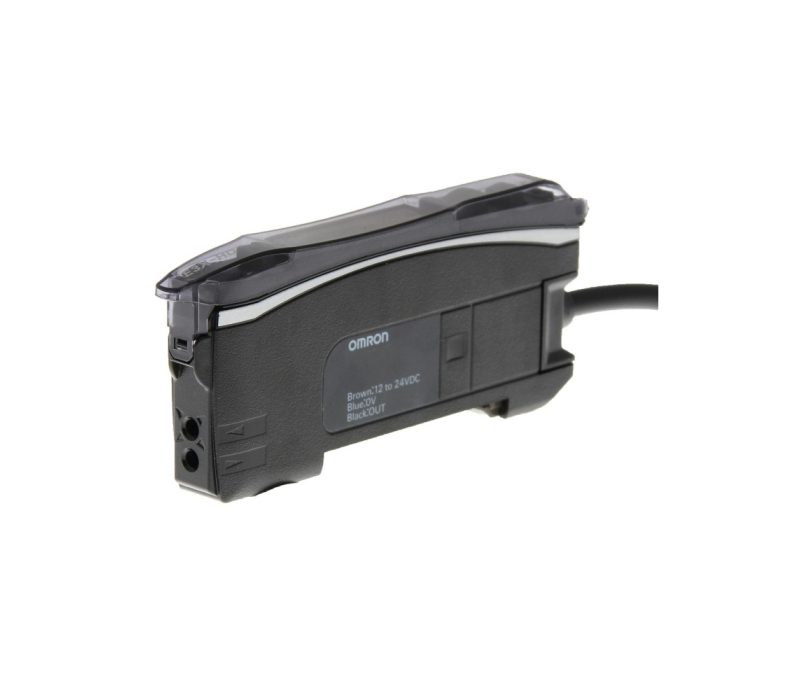

E3X-HD11 Omron Fiber Optic Sensor
Model: E3X-HD11 Omron Fiber Optic Sensor
Manufacturers OMRON Produc…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
OMRON
Product Description
- Light source (wavelength): Red, 4-element LED (625 nm)
- Supply voltage: 12 to 24 VDC ±10%, ripple (pp)10% max.
- Power consumption: Normal mode: 720 mW maximum (current
- Consumption: 30 mA max at 24 VDC,
- 60 mA maximum at 12 VDC. )
- Power saving economy mode: 530 mW maximum. (Current consumption:
- 22 mA maximum at 24 VDC, 44 mA maximum at 12 VDC. )
- Protection circuit: power reverse connection protection,
- Output short circuit protection and output reverse connection protection
- High speed mode (HS): operation or reset: 250 μs
- Standard mode (STND): operation or reset: 1 ms
- Standard mode (STND): operation or reset: 1 ms
- Gigabit power mode (GIGA): operation or reset: 16 ms
- Dimensions(L x W x H ):0cm x 0cm x 0cm
- Weight:0.022Kg
- Country of origin: Japan
