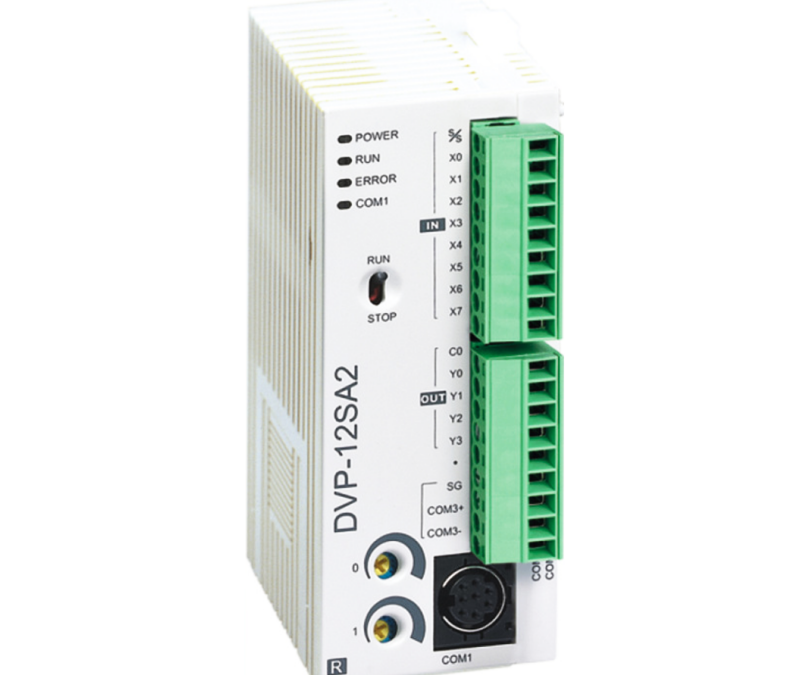

DVP12SA211T Delta Programmable Logic Controller
Model: DVP12SA211T Delta Programmable Logic Controller
up to DVP-SA2. DVP-SA2 is …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- up to DVP-SA2. DVP-SA2 is a 12-point (8DI + 4DO) PLC host.
Provides rich instructions and 16k-step program memory, and can connect to all DVP-S series expansion modules and high-speed expansion modules, including digital I/O (maximum 480 I/O points) and analog modules (for A/D, D/ A conversion and temperature measurement). - MPU points: 12 (8DI+4DO)
- maximum. I/O points: 492 (12+480)
- Program capacity: 16k steps
- COM port: Built-in RS-232 and 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.
- High-speed pulse output: supports 2 points (Y0, Y2) 100kHz and 2 points (Y1, Y3) 10kHz independent high-speed pulse output.
- Expandable to maximum. 8 modules: DVP-SA2 expandable analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication module and single-axis motion control functions.
- Power supply voltage 24VDC (-15~20%) (with DC input power supply polarity reverse protection)
- DVPPS01/PS02: Input 100 to 240 VAC, Output 24 VDC/1A (PS02: 2A)
- European standard detachable terminal blocks (pitch: 3.5mm)
- Maximum power outage time is 10ms or less.
- Inrush current
- maximum. 7.5 A@24 VDC, I2t = 0.25 A2S
- Fuse capacity
- 2.5 A/30 VDC, polymer switch
- Power consumption 1.8W 1.5W
- Weight :1.25kg
- country of origin?? China
