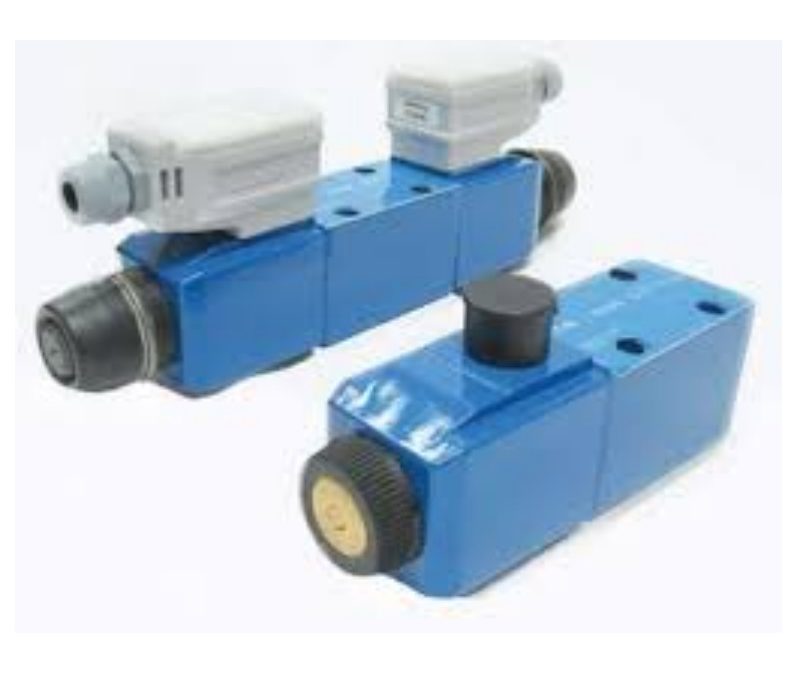

DG4V-3S-2C-M-U-B5-60 Vickers Directional Control Valve – Solenoid Actuation
Model: DG4V-3S-2C-M-U-B5-60 Vickers Directional Control Valve – Solenoid Actuation
Actuation Solenoid Per…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Actuation Solenoid
Performance Specification Standard Performance
Valve Size D03
Maximum Flow Rate 10.5 gpm
Maximum Operating Pressure 5075 psi
Coil Voltage 110 V ac (50 Hz) / 120 V ac (60 Hz)
Spool Type Closed Center (All Ports)
Spool/Spring Arrangement Spring Centered
Mounting Type Manifold, Subplate
Flow Direction 4-Way
Electrical Connection ISO 4400 (DIN 43650) Mounting
Electrical Connector Type ISO 4400 (Din 43650) Connector
Design Number 60 (Basic)
T Port Pressure Rating 1450 psi
Valve Application Industrial
Maximum Ambient Temperature +158 °F
Maximum Operating Temperature 158 °F
Seal Material Buna-N
Minimum Operating Temperature -4 °F
Overall Height 87 mm
Overall Width 48 mm
Overall Length 200 mm
Body Material Gray Iron
Compatible Replacement Parts 893240 Spool Accessory Kit (Spool Not Included In Kit And Must Be Ordered Separately, Included With 893240 Spool Accessory Kit, 694274 Knob, 890246 Core Tube S/A, Included With 890246 Core Tube S/A, 617118 Spool, 507731 Body, 858995 Seal Kit, 02-101726 Din Coil
Fluid Compatibility Petroleum Oil
Check Location Solenoid A, Solenoid B
Check Valve Type Directional Control Valve
Series DG4V-3 60 Design
Size (ISO-4401) D03
Valve Type IV Directional Control Valves
