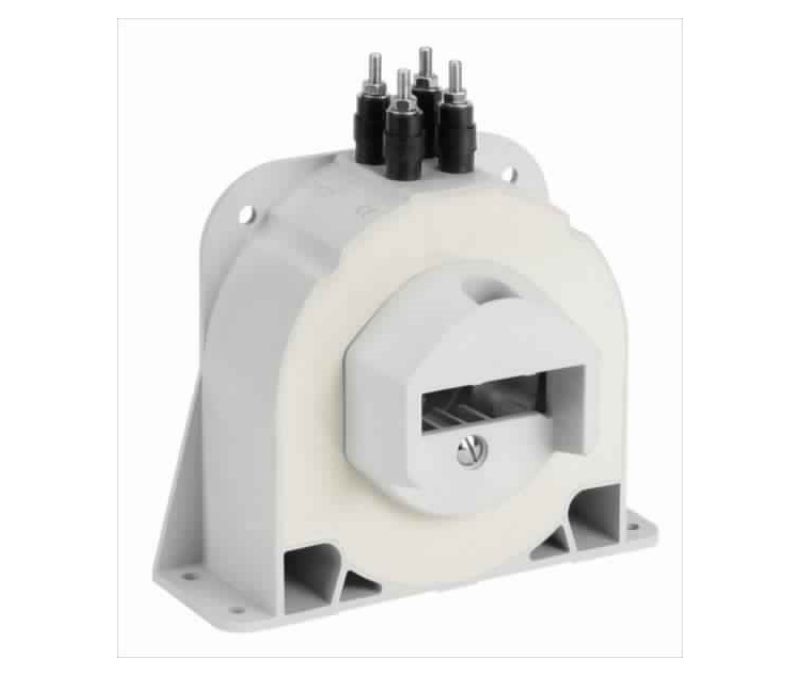

CS2000-9944 ABB CS Traction Current Sensors
Model: CS2000-9944 ABB CS Traction Current Sensors
Nominal Primary Current IP…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Nominal Primary Current IPN (A) | 2000 A |
| Measuring Range at ±24 V (Peak) | ±3000 A |
| Secondary Current at IPN | 500 mA |
| Supply Voltage (DC) | ±15 to ±24 V |
| Product Type | Current sensors |
| Mounting Type | Vertical + Screen |
| Not Measurable Overload (Peak) | 20000 A |
| Max. Measuring Resistance at ±24 V | 9 O |
| Min. Measuring Resistance at ±15 V | 0 O |
| Turn Number | 4000 |
| Accuracy at IPN | = ±1 % |
| Accuracy at IPN (-40 to 85°C) | = 0.25 mA |
| Offset Current | = 0.1 % |
| Linearity | = 25 µA/ºC |
| Thermal Drift Coefficient (-40 to 85°C) | = 1 µs |
| Delay Time | = 100 A/µs |
| Bandwidth | = 100 kHz |
| Max. No-Load Consumption Current | = 25 mA |
| Secondary Resistance | = 20 O |
| Dielectric Strength Primary/Secondary1 | 12 kV |
| Dielectric Strength Secondary/Screen (if relevant)2 | 1.5 kV |
| Voltage Drop | ±15 to ±24 V |
| Mass | 1.5 kg |
| Mass with Side Plates | 1.66 kg |
| Operating Temperature | -40 to 85 ºC |
| Storage Temperature | -50 to +90 ºC |
