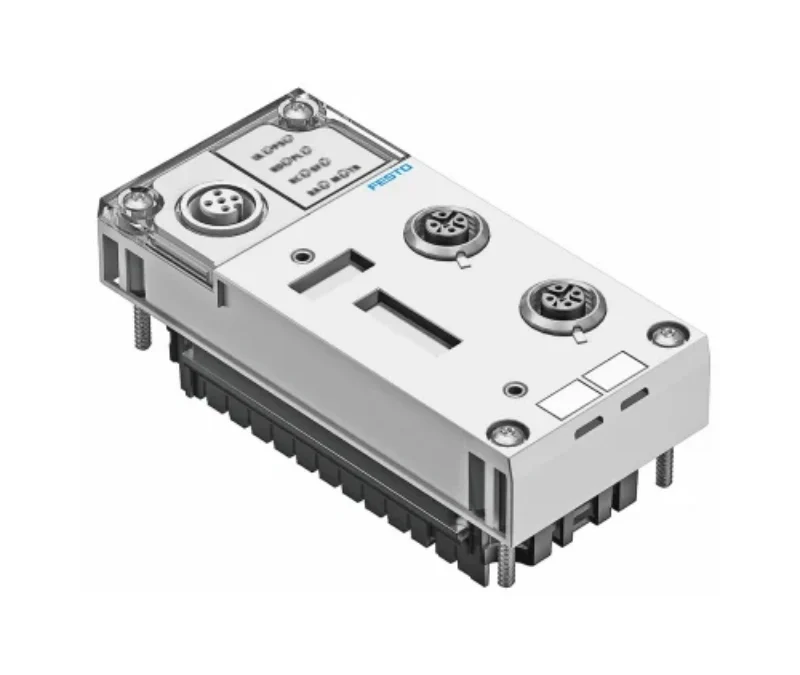

CPX-FB36 Festo Bus node
Model: CPX-FB36 Festo Bus node
ProtocolEtherNet/IP Modbus…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- ProtocolEtherNet/IP Modbus? TCP
- Dimensions W x L x H(incl. interlinking block) 50 mm x 107 mm x 50 mm
- Product weight125 g
- Ambient temperature-5 ??C … 50 ??C
- Storage temperature-20 ??C … 70 ??C
- Degree of protectionIP65 IP67
- Corrosion resistance class (CRC)1 – Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Note on materialsRoHS-compliant
- Housing materialPA-reinforced
- LED display (product-specific)M: Modify, parameterization PL: load supply PS: electronics supply, sensor supply SF: system fault
- LED display (bus-specific)MS: module status NS: network status TP1: network active port 1 TP2: network active, port 2
- Device-specific diagnosticsChannel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostic memory
- Control elementsDIL switch
- Fieldbus interface2x socket, M12x1, 4-pin, D-coded
- Max. address capacity inputs64 byte
- Max. address capacity outputs64 byte
- ParameterizationDiagnostic behavior Fail-safe response forcing of channels Idle mode performance Signal setup System parameter
- Baud rate10/100 Mbit/s
- Configuration supportEDS file L5K export with CPX-FMT
- Additional functionsAcyclic data access via “Explicit Message” Acyclic data access via Ethernet EtherNet/IP Quickconnect IP addressing via DHCP, DIL switch or operator unit Integrated switch Channel-based diagnostics via fieldbus Ring topology (DLR) Start-up parameterization in plain text via fieldbus System status can be indicated via process data
- DC operating voltage range18 V … 30 V
- Nominal operating voltage DC24 V
- Intrinsic current consumption at nominal operating voltageTyp. 100 mA
