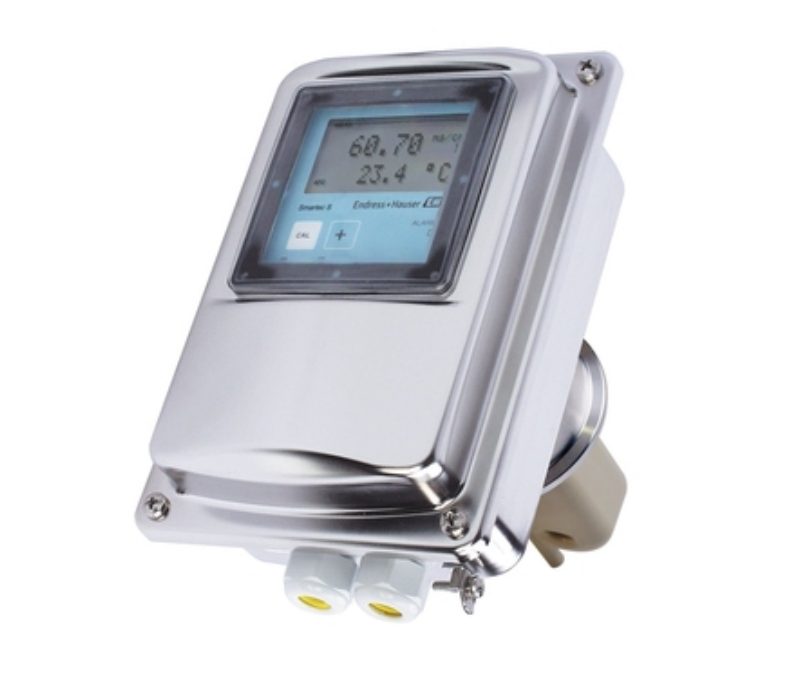

CLD134-PMV538AB2 Endress+Hauser Conductivity compact device
Model: CLD134-PMV538AB2 Endress+Hauser Conductivity compact device
Measured values Conductivi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Measured values Conductivity
Concentration
Temperature
Measuring range Conductivity: Recommended range: 100 μS/cm to 2000 mS/cm
(uncompensated)
Concentration:
NaOH: 0 to 15 %
HNO3: 0 to 25 %
H2SO4: 0 to 30 %
H3PO4: 0 to 15 %
User 1 (to 4): (4 tables available in versions with additional “remote
parameter set configuration” function)
Temperature: –35 to +250 °C (-31 to +482 °F)
Temperature measurement Pt 1000
Sensor cable Max. cable length of 55 m (180 ft.) with CLK6 cable (remote version)
Binary inputs 1 and 2 Voltage 10 to 50 V
Current consumption Max. 10 mA at 50 V
