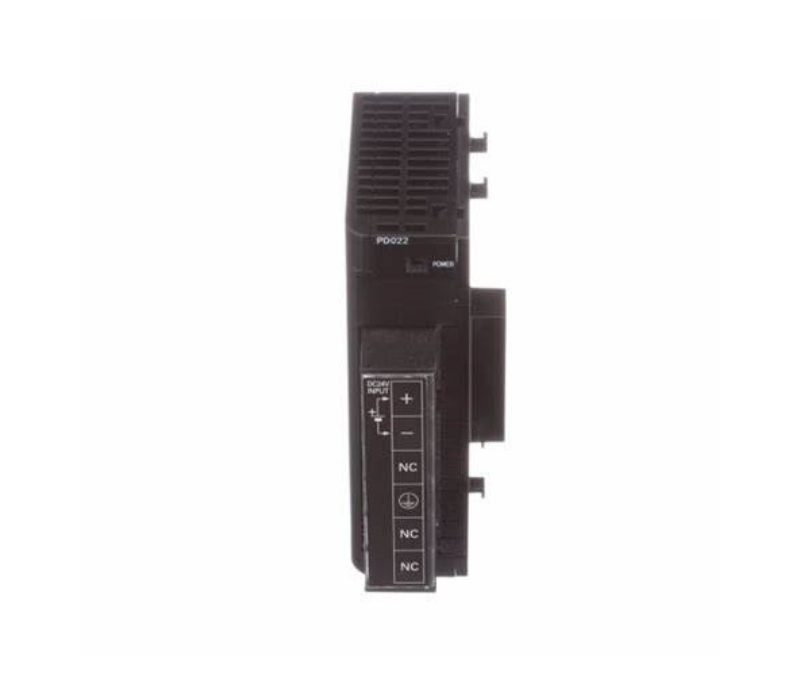

CJ1W-PD022 Omron POWER SUPPLY MODULE
Model: CJ1W-PD022 Omron POWER SUPPLY MODULE
Item Specifications Model …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Item | Specifications | ||
|---|---|---|---|
| Model | CJ1W-PA205R | CJ1W-PA205C | CJ1W-PA202 |
| Supply voltage | 100 to 240 V AC (wide-range), 50/60 Hz | ||
| Operating voltage and frequency ranges |
85 to 264 V AC, 47 to 63 Hz | ||
| Power consumption | 100 VA max. | 50 VA max. | |
| Inrush current *1 | At 100 to 120 V AC: 15 A/8 ms max. for cold start at room temperature At 200 to 240 V AC: 30 A/8 ms max. for cold start at room temperature |
At 100 to 120 V AC: 20 A/8 ms max. for cold start at room temperature At 200 to 240 V AC: 40 A/8 ms max. for cold start at room temperature |
|
| Output capacity *7 | 5.0 A, 5 V DC (including supply to CPU Unit) | 2.8 A, 5 V DC (including supply to CPU Unit) |
|
| 0.8 A, 24 V DC | 0.4 A, 24 V DC | ||
| Total: 25 W max. | Total: 14 W max. | ||
| Output terminal (service supply) |
Not provided. | ||
| RUN output *2 | Contact configuration: SPST-NO Switch capacity: 250 V AC, 2 A (resistive load) 120 V AC, 0.5 A (inductive load), 24 V DC, 2A (resistive load) 24 V DC, 2 A (inductive load) |
Not provided. | |
| Weight | 350 g max. | 400 g max. | 200 g max. |
|---|---|---|---|
| CPU Rack dimensions |
90.7 to 466.7 × 90 × 65 mm (W × H × D) (not including cables) Note: W = a + b + 20 × n + 31 × m + 14.7 a: Power Supply Unit: PA205R and PA205C = 80; PA202 = 45; PD025 = 60; PD022=27 b: CPU Unit: CJ1-H or CJ1 = 62; CJ1M-CPU1[] = 31 *8; CJ1M-CPU2[] = 49 *8 The total width is given by the following: W = 156.7 + n × 20 + m × 31, where n is the number of 32-point I/O Units or I/O Control Units and m is the number of other Units. |
||
