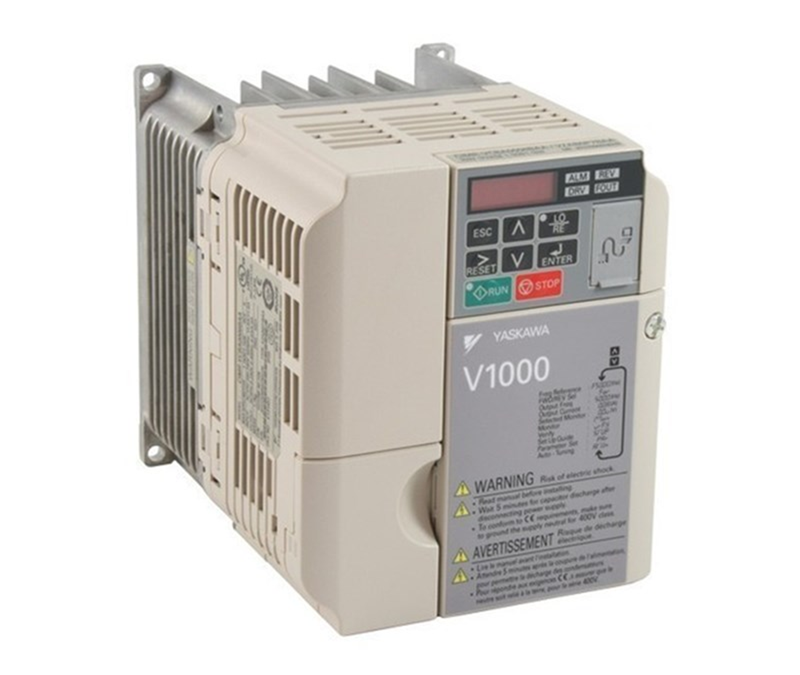

CIMR-VCBA0003BAA YASKAWA AC DRIVE V1000 SERIES
Model: CIMR-VCBA0003BAA YASKAWA AC DRIVE V1000 SERIES
Manufacturers yaskawa Mod…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
yaskawa
Model(s)
Yaskawa V1000 Series AC Inverter for 0.4kW (0.5HP) 230V 3ph motor to 3A at high overload or 0.75kW (1HP) to 3.3A when Fan/Pump rated. Operates in VxF or Sensorless Vector control and converts fixed frequency Single or Three Phase 230V input to variable frequency Three Phase 230V for a standard AC Induction motor.
Size 1C: 68mm wide x 118mm deep x 128mm high. IP20
Weight: 1kg.
Overload: 150% x 60 seconds. High Overload.
Overload: 120% x 60 seconds. Fan/Pump Rated.
Speed Control Range: 0.01-400Hz.
Braking – 100% Torque x 12 seconds every 120 seconds to 200 Ohm Minimum external resistor (not supplied) – see the Resistor options linked below or use the ‘Which Resistor’ button on this page.
2 x Analogue Input, 1 x Analogue Output, 6 Digital Inputs, 1 Pulse Input,1 Pulse Output, 1 Relay Contact set.
‘Safe Torque Off’ (STO) function to SIL 2.
Input Current: 5.5A at High Overload, 7.3A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%
EMC Filters: None (see linked products below for external filter)
