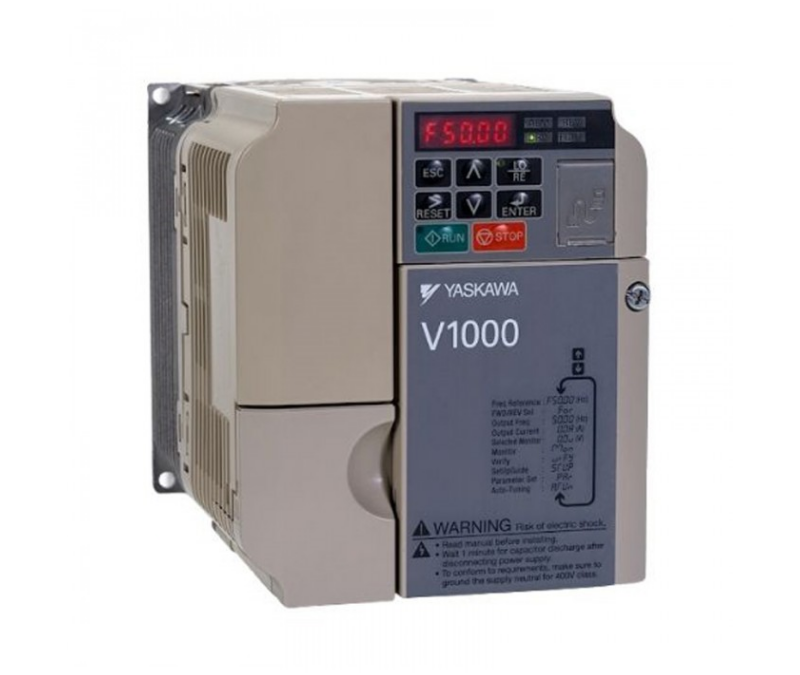

CIMR-VC4A0004BAA Yaskawa V1000 IP20 0.75 kW/1.5 kW 400V 3ph
Model: CIMR-VC4A0004BAA Yaskawa V1000 IP20 0.75 kW/1.5 kW 400V 3ph
Technical Details Input po…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical Details
Input power supply
400 V
Rated output current (HD)
3.4 A
Rated output current (ND)
4.1 A
Overload Tolerance (ND)
120 % for 60 s
Overload Tolerance (HD)
150 % for 60 s
Max. applicable motor power (HD)
1.1 kW
Max. applicable motor power (ND)
1.5 kW
Input power phases
3-phase
Motor type
Permanent magnet motor, Induction motor
Standards compliance
cUL, CE, RoHS, UL, UKCA
Ambient Temperature (Min)
-10 °C
Ambient Temperature (Max)
50 °C
Max. Humidity (non-condensing)
95 %
Max. Altitude (without Derating)
1000 m
Max. Altitude (with Derating)
3000 m
Height
128 mm
Width
108 mm
Depth
137.5 mm
Weight
1.7 kg
Cooling method
Coldplate, Air cooling
Enclosure
IP20/UL Open Type
Environmental Specifications
Standard
Analog Input
2
Analog Output
1
Digital Input
6
Digital Output
3
Safety Level
SIL2
Performance Level
PL d
Torque Control
Not available
Braking transistor
External
Motor Thermal Protection
Standard
Max Output Frequency
400 Hz
